We have developed and sold this High Start Torque Radial Piston with Eccentric Shaft Motor to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Constant training and education enables us to stay on top of industry trends,so we can offer top notch services every time you need us. We are expecting to become your long-term partner in China.

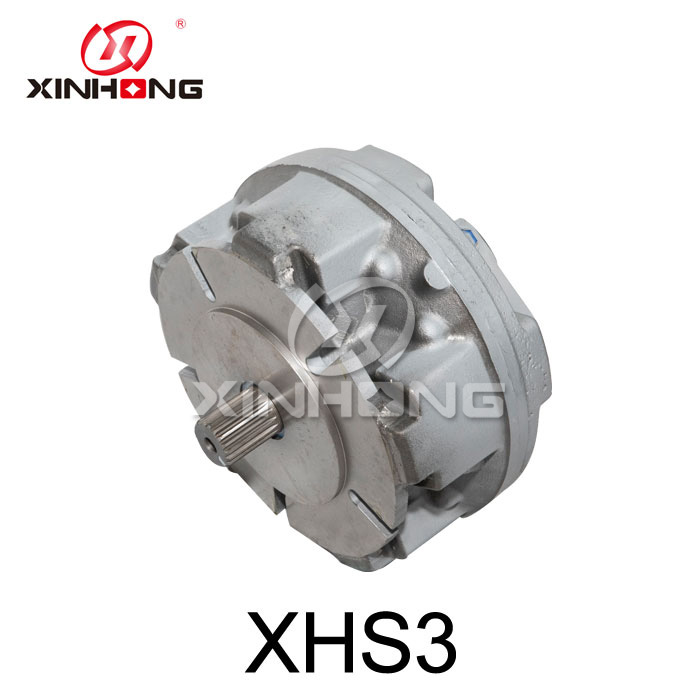

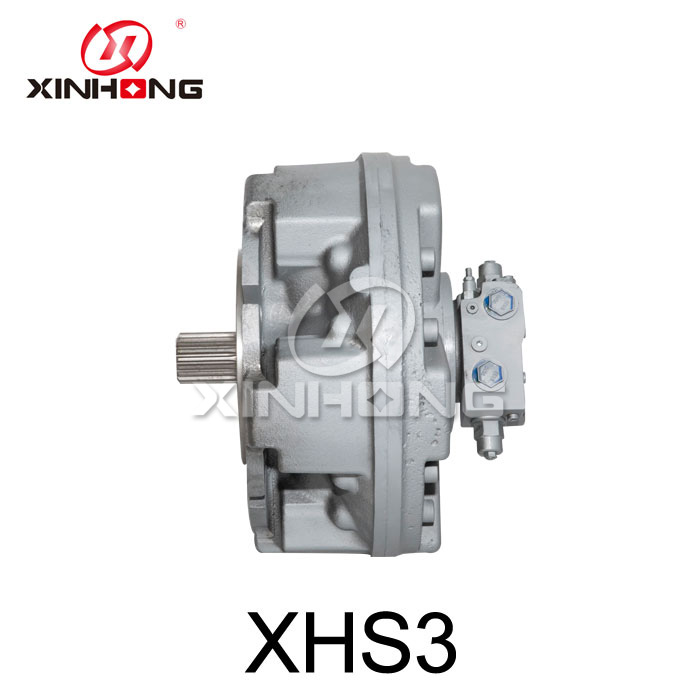

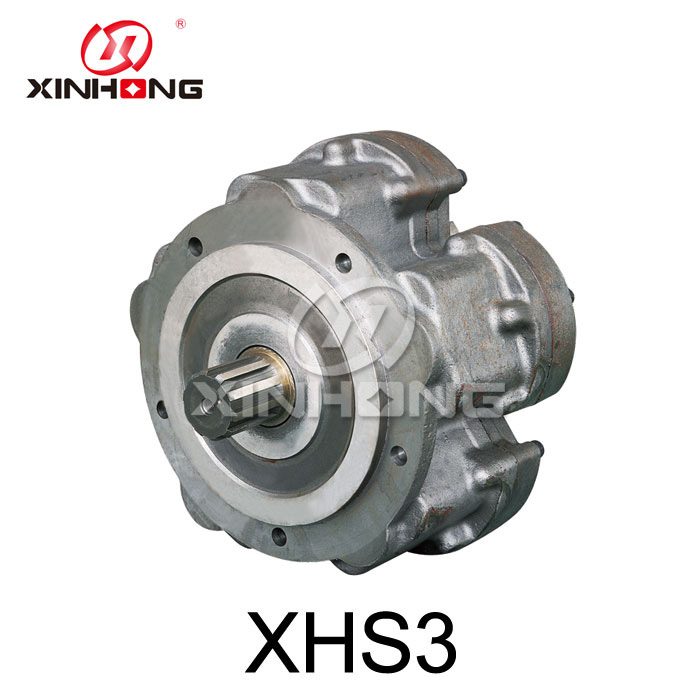

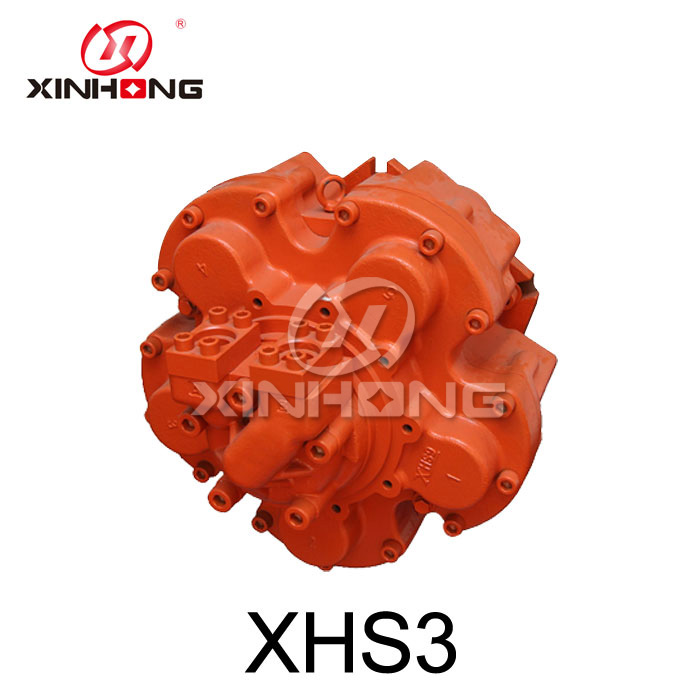

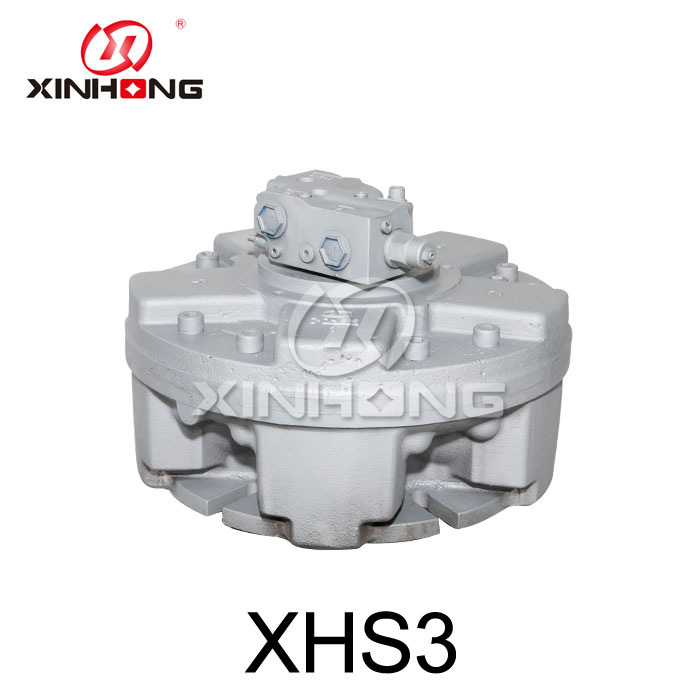

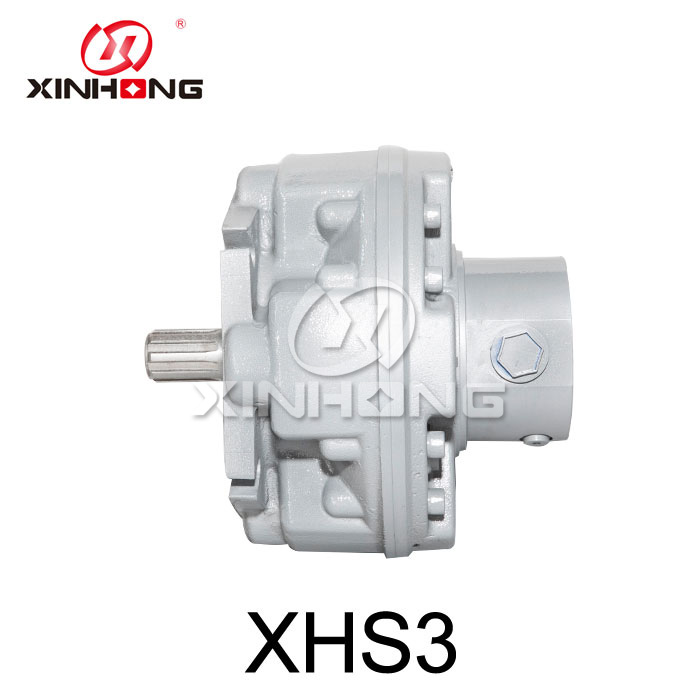

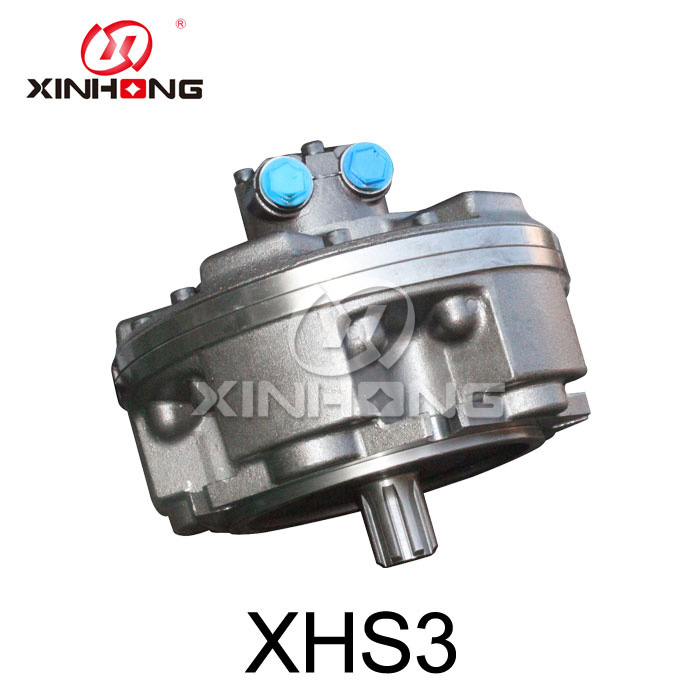

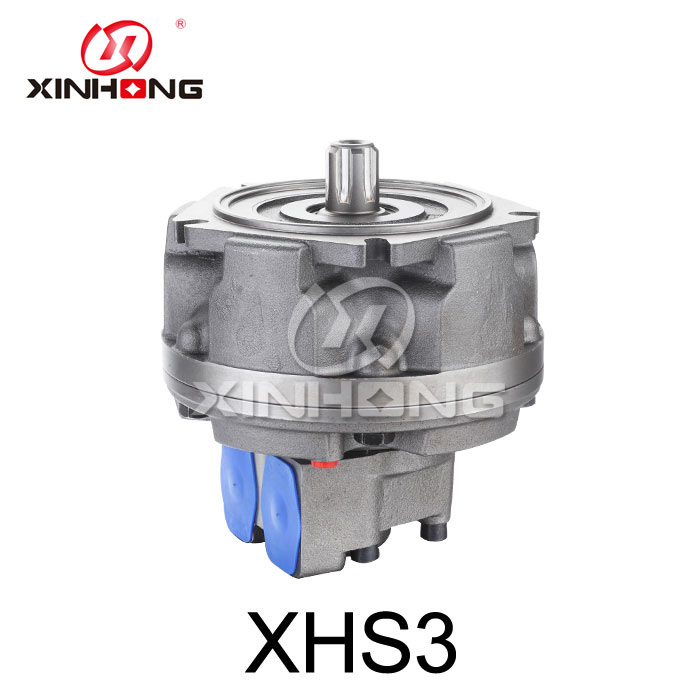

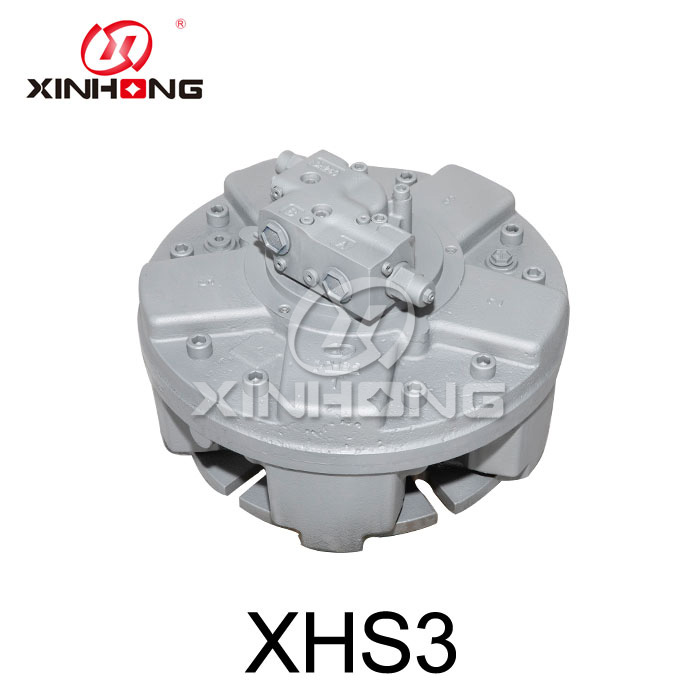

1.Product Introduction of High Start Torque Radial Piston with Eccentric Shaft Motor
We have manufactured this High Start Torque Radial Piston with Eccentric Shaft Motor since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This High Start Torque Radial Piston with Eccentric Shaft Motor can transfer hydraulic energy to mechanical energy with high efficiency. External shaft loads are admissible, owing to the strong construction.
2.Product Parameter (Specification) of High Start Torque Radial Piston with Eccentric Shaft Motor
|
XHS3 |
Unit |
350 |
425 |
500 |
600 |
700 |
800 |
900 |
1000B |
|
Displacement |
ml/r |
351 |
425 |
485 |
594 |
689 |
791 |
872 |
987 |
|
Specific torque |
Nm/MPa |
55.8 |
67.5 |
77.1 |
94.4 |
109 |
125 |
138 |
156 |
|
Pressure rating |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Peak pressure |
MPa |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|
Peak power |
kW |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
80 |
|
Torque rating |
Nm |
1245 |
1510 |
1720 |
2110 |
2475 |
2845 |
3130 |
3550 |
|
Peak torque |
Nm |
1480 |
1795 |
2050 |
2510 |
2950 |
3385 |
3730 |
4225 |
|
Speed rating |
r/min |
400 |
400 |
360 |
360 |
300 |
280 |
250 |
220 |
|
Cont. speed |
r/min |
500 |
500 |
450 |
450 |
380 |
350 |
350 |
280 |
|
Max. speed |
r/min |
650 |
600 |
550 |
500 |
450 |
450 |
380 |
330 |
|
Weight |
kg |
87 |
87 |
87 |
87 |
87 |
87 |
87 |
87 |
3.Product Feature And Application
This is a fixed displacement and High Start Torque Radial Piston with Eccentric Shaft Motor. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of High Start Torque Radial Piston with Eccentric Shaft Motor
This High Start Torque Radial Piston with Eccentric Shaft Motor is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of High Start Torque Radial Piston with Eccentric Shaft Motor
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of High Start Torque Radial Piston with Eccentric Shaft Motor
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
