We have developed and sold this High Strength Planetary Gearbox to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy High Strength Planetary Gearbox from us. Every request from customers is being replied within 24 hours.

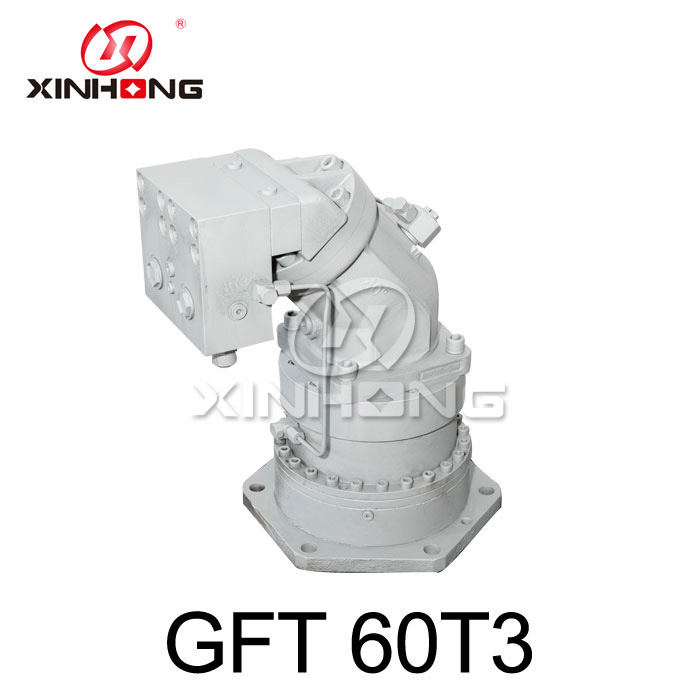

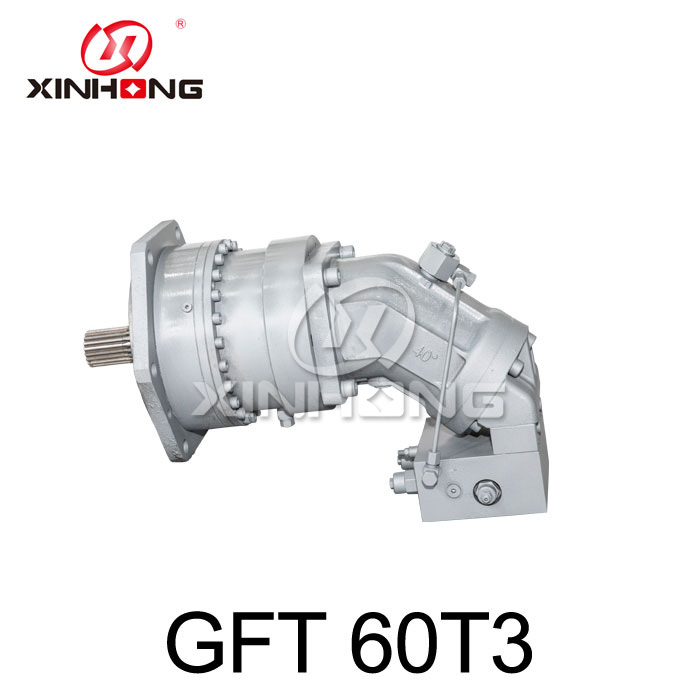

1.Product Introduction of High Strength Planetary Gearbox
We have manufactured this High Strength Planetary Gearbox since 2006. We have a plenty of experience and advanced equipment in manufacturing High Strength Planetary Gearbox with the precisely helical teeth and balanced sun-gear shaft. This High Strength Planetary Gearbox can transfer power from hydraulic motor to winch or rotatory machine.
2.Product Parameter (Specification) of High Strength Planetary Gearbox
|
Max Output torque（TmaxN.m） |
Transmission ratio |
Model of hydraulic motor |
Max.input rotating ratio(r/min) |
Static brake torque(TBRmax.N.m) |
Brake working pressure Mpa |
|
|
60000 |
86.5 94.8 105.5 119.8 139.9 169.9 |
A2FE80 A2FE90 A2FE107 A2FE125 |
A6VE80 A6VE107 A6VE160 |
2000 |
800-1200 |
1.8-5 |
3.Product Feature And Application
This High Strength Planetary Gearbox includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of High Strength Planetary Gearbox can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This High Strength Planetary Gearbox is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.

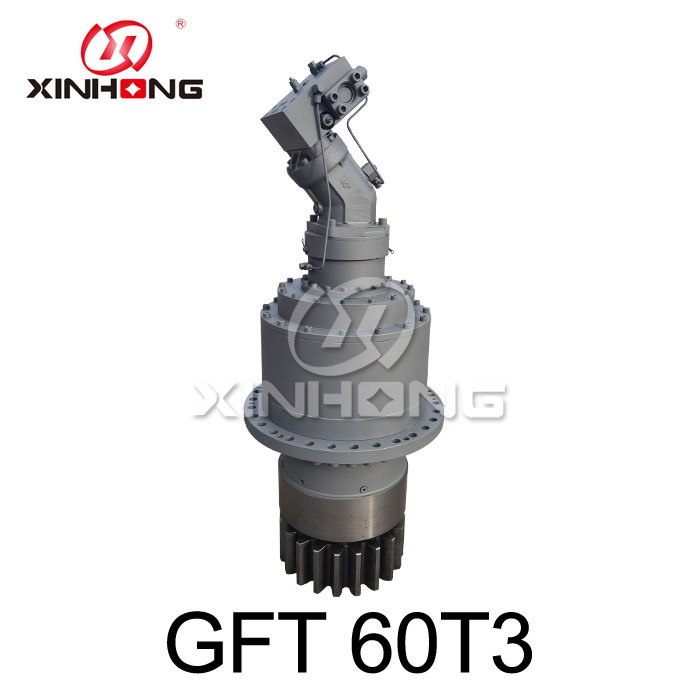

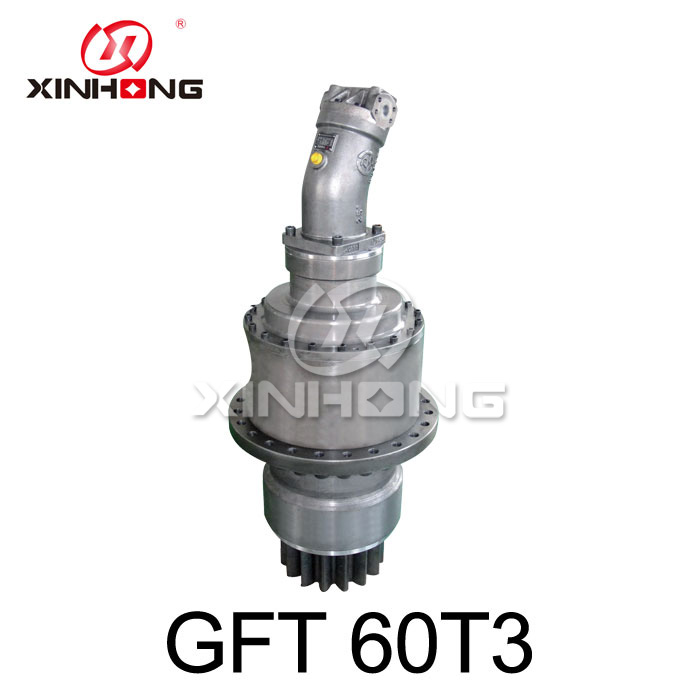

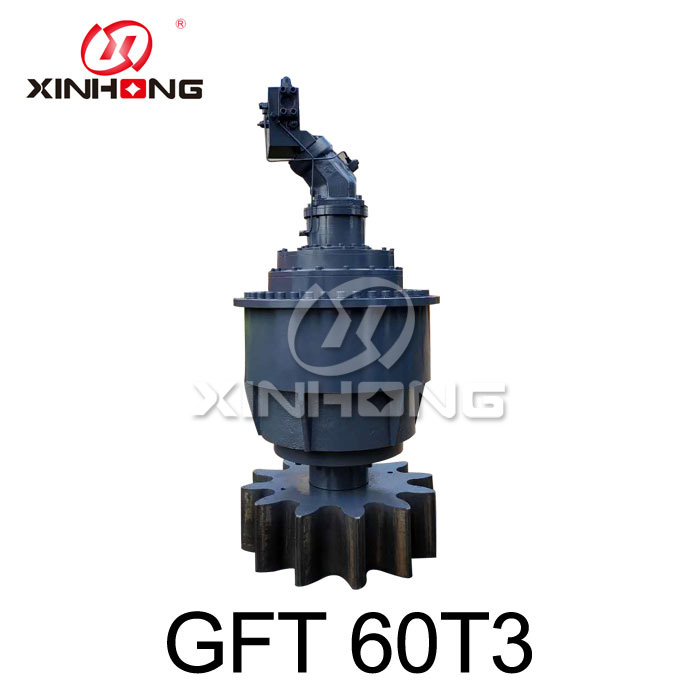

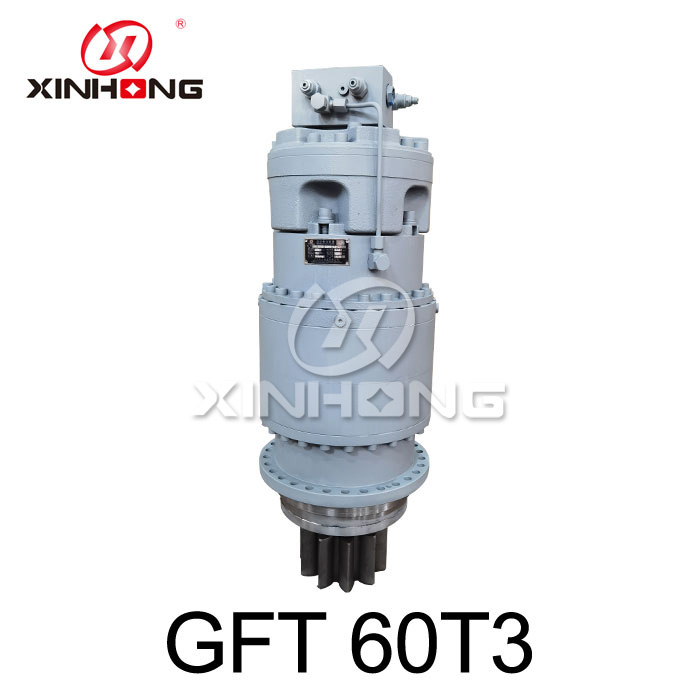

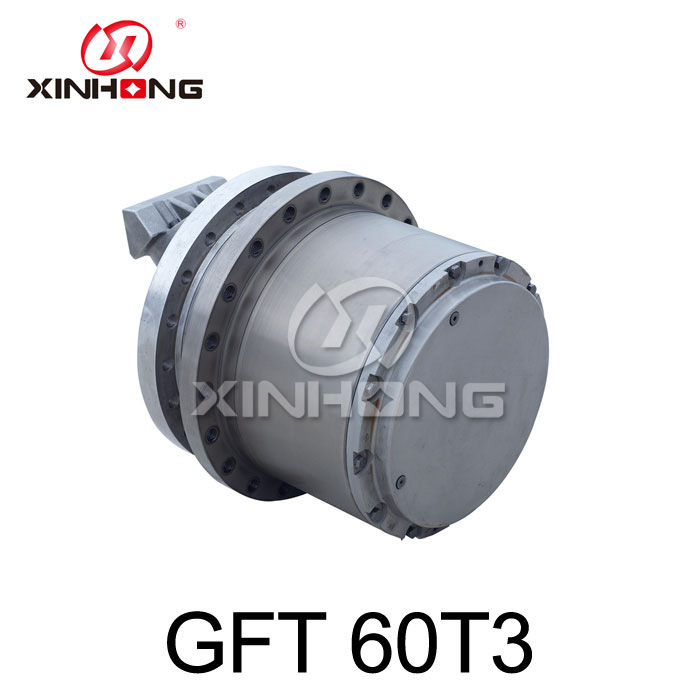

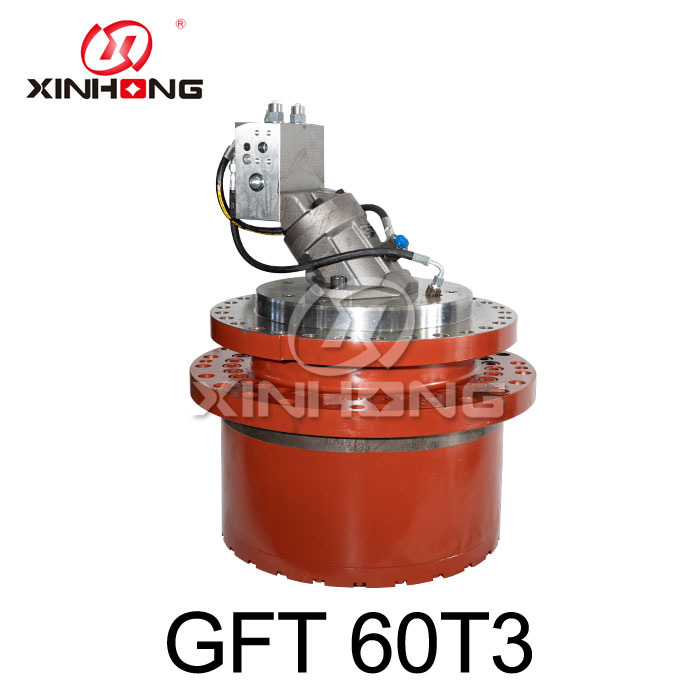

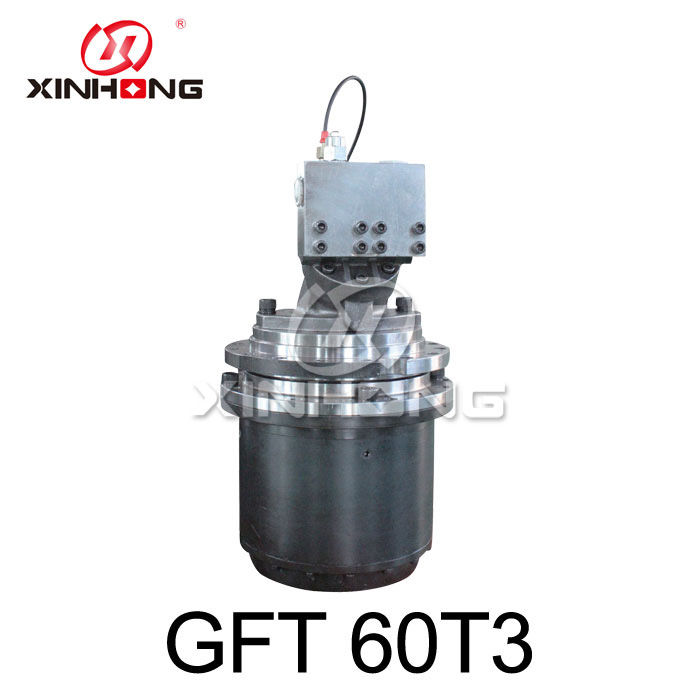

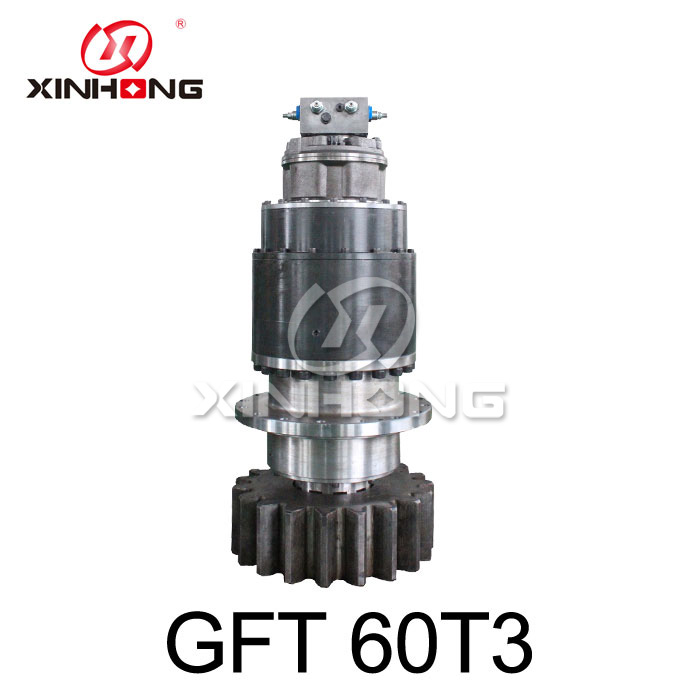

4.Product Details of High Strength Planetary Gearbox
Our High Strength Planetary Gearbox has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our High Strength Planetary Gearbox boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.
5.Product Qualification of High Strength Planetary Gearbox
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of High Strength Planetary Gearbox
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
