Radial Piston Motor for Construction

We have developed and sold this Radial Piston Motor for construction to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. With competitive prices and reliable delivery services, we are expecting become your long-term partner in China.We are expecting to become your long-term partner in China.

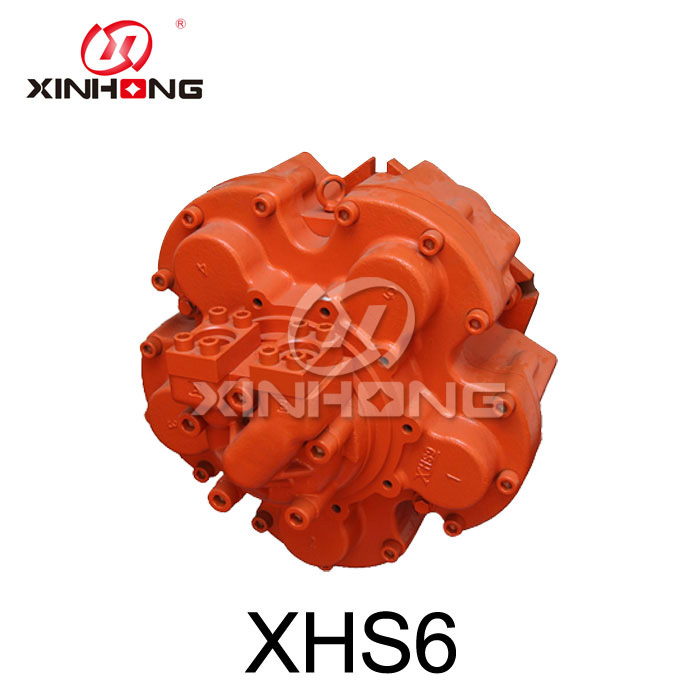

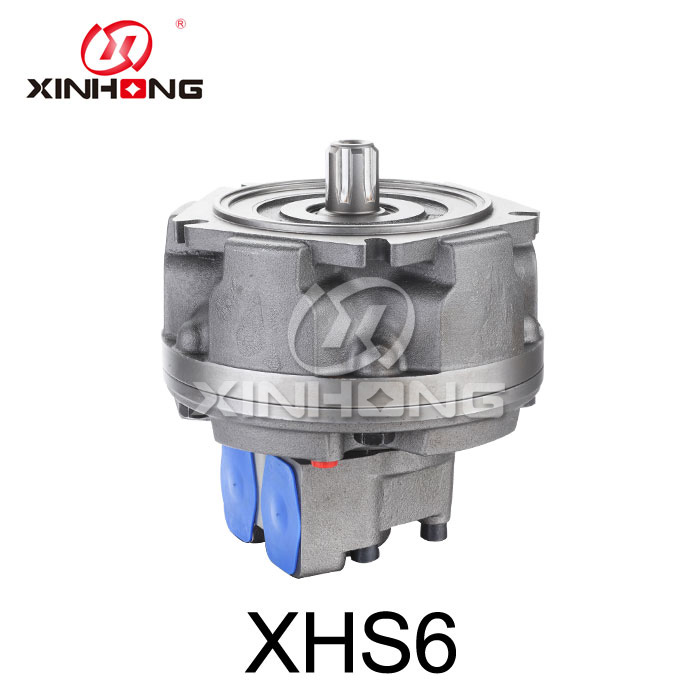

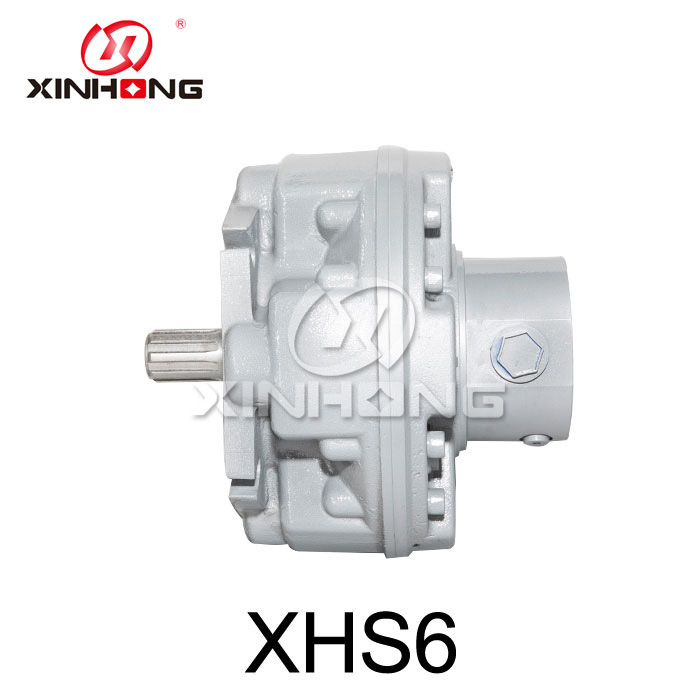

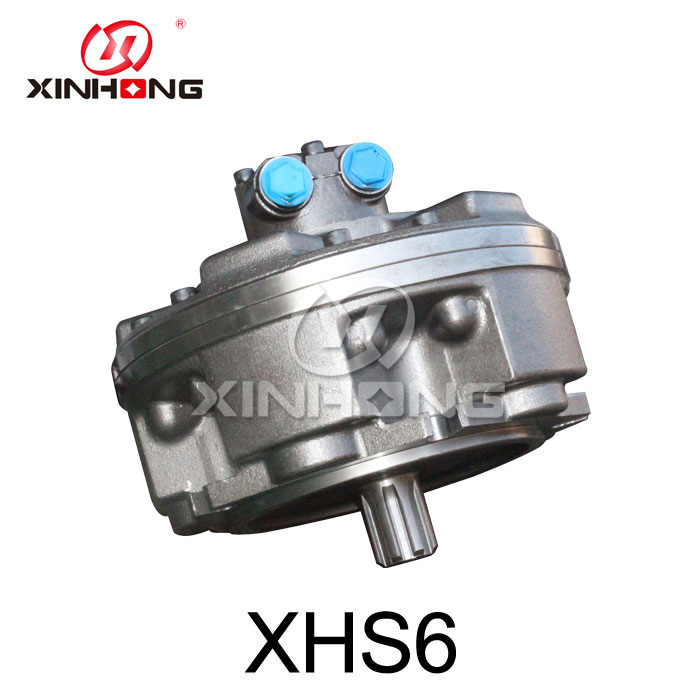

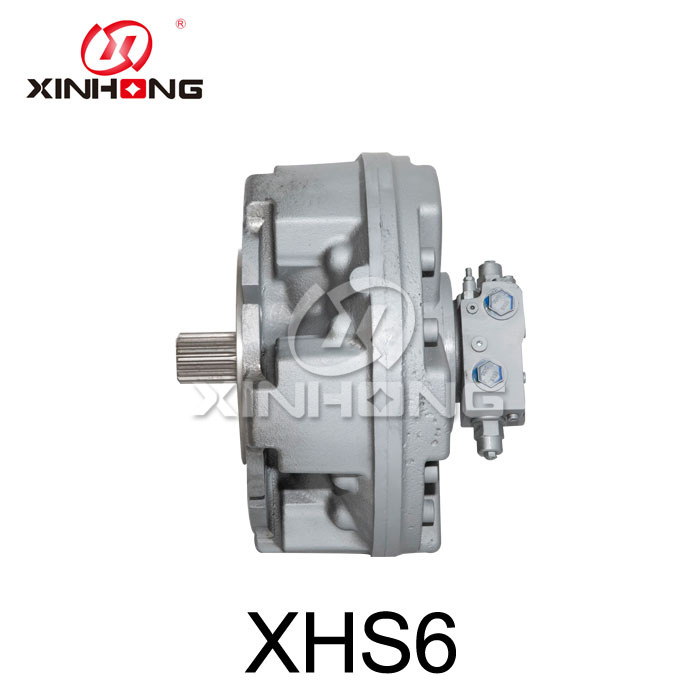

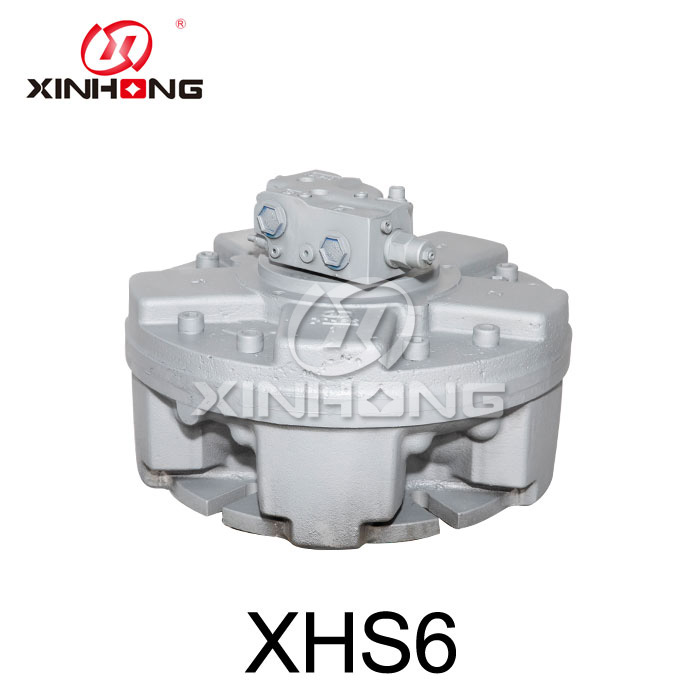

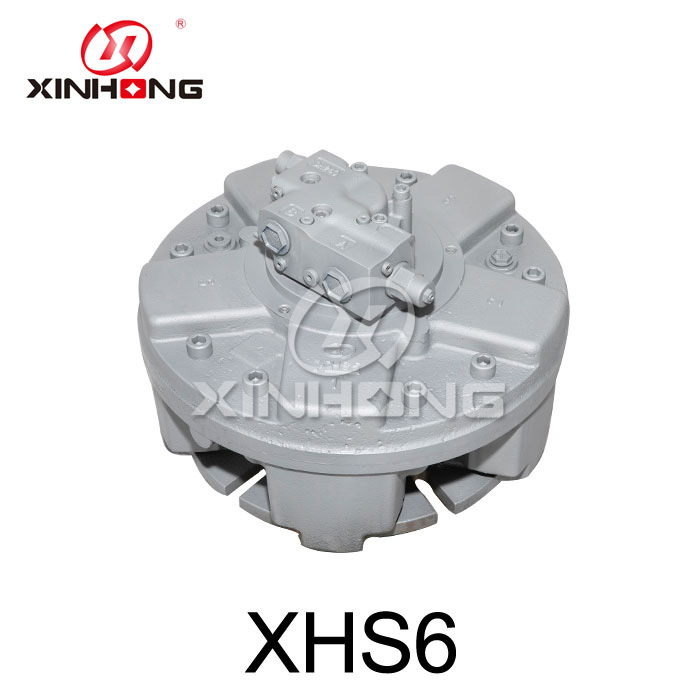

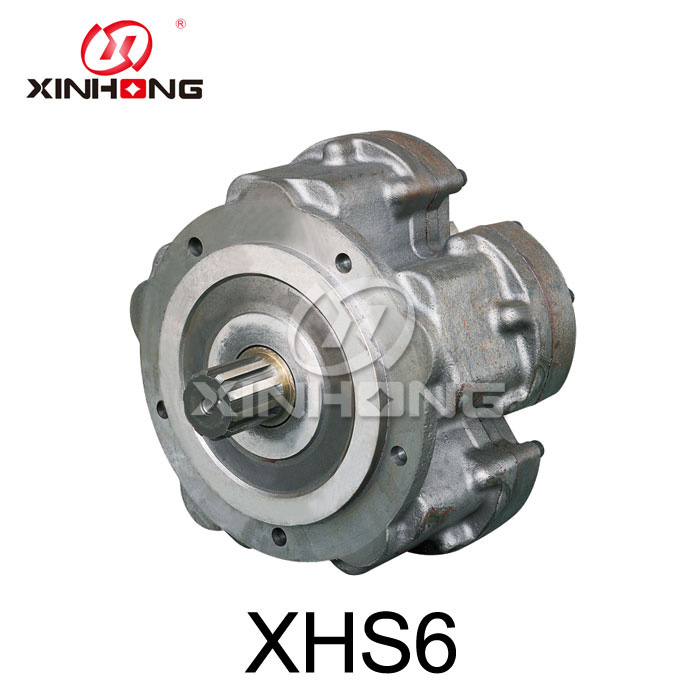

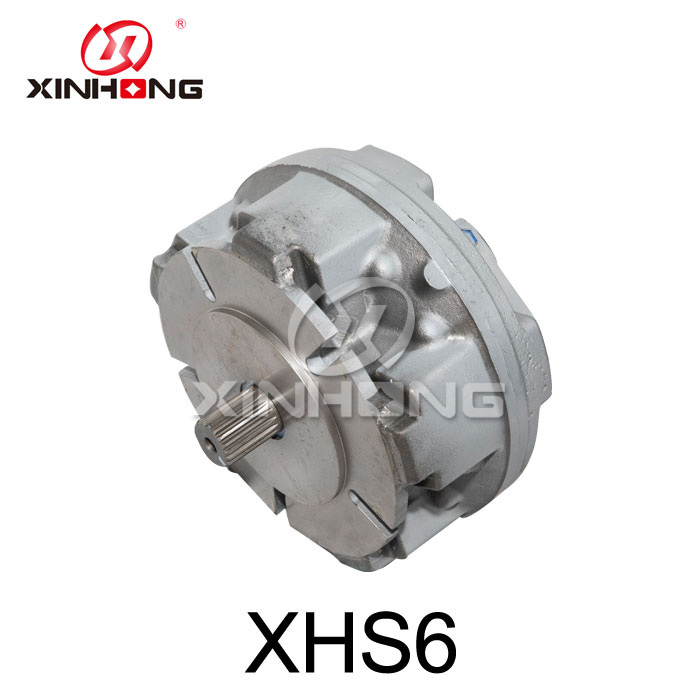

Model:XHS6

Send Inquiry

Product Description

1.Product Introduction of Radial Piston Motor for construction

We have manufactured this Radial Piston Motor for construction since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor for construction can transfer hydraulic energy to mechanical energy with high efficiency. We enjoy a reputation of quality, ethics and service.As for aggressive selling prices, we believe that you will be searching far and wide for anything that can beat us. We are able to state with absolute certainty that for such good quality at such costs we've been the lowest around for Best quality China Poclain Motor Ms05 Hydraulic Motor, Our main objectives are to provide our customers worldwide with good quality, competitive price, satisfied delivery and excellent services. Best quality, Radial Piston Hydraulic Motor, Our company adheres to the spirit of "lower costs, higher quality, and making more benefits for our clients". Employing talents from the same line and adhering to the principle of "honesty, good faith, real thing and sincerity", our company hopes to gain common development with clients from both at home and abroad.

Radial Piston Motor for Construction


2.Product Parameter (Specification) of Radial Piston Motor for construction

XHS6

Unit

1500

1700

1900

2100

2300

2500

2800B

3000B

Displacement

ml/r

1495

1761

1894

2138

2328

2518

2803

3041

Specific torque

Nm/MPa

237

279

301

339

370

400

445

483

Pressure rating

MPa

25

25

25

25

25

25

25

25

Peak pressure

MPa

31.5

31.5

31.5

31.5

31.5

31.5

31.5

31.5

Peak power

kW

170

170

170

170

170

170

170

170

Torque rating

Nm

5375

6330

6810

7690

8370

9055

10080

10935

Peak torque

Nm

6400

7540

8110

9155

9965

10780

12000

13020

Speed rating

r/min

210

200

190

180

170

160

140

130

Cont. speed

r/min

260

250

240

220

210

200

180

170

Max. speed

r/min

330

330

280

280

230

230

210

210

Weight

kg

275

275

275

275

275

275

275

275


3.Product Feature And Application

This is a fixed displacement and Radial Piston Motor for construction. This high mechanical and volumetric efficiency piston motor has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.


4.Product Details of Radial Piston Motor for construction

This Radial Piston Motor for construction is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.


5.Product Qualification of Radial Piston Motor for construction

Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.


6.Deliver,Shipping And Serving of Radial Piston Motor for construction

We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
