We have developed and sold this Radial Piston Motor for Crane Winches to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. We hope to establish friendly cooperative relationship with your company with high quality products, reasonable price, considerate service and create a better future hand in hand. We are expecting to become your long-term partner in China.

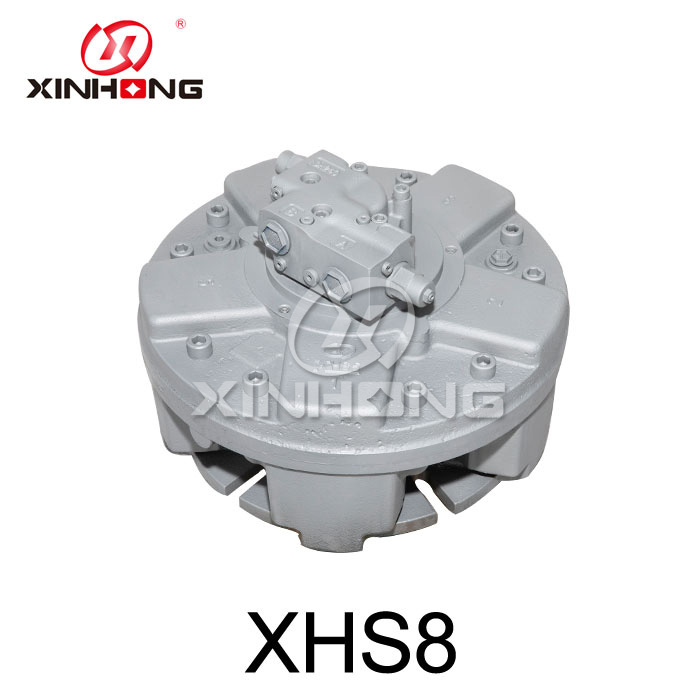

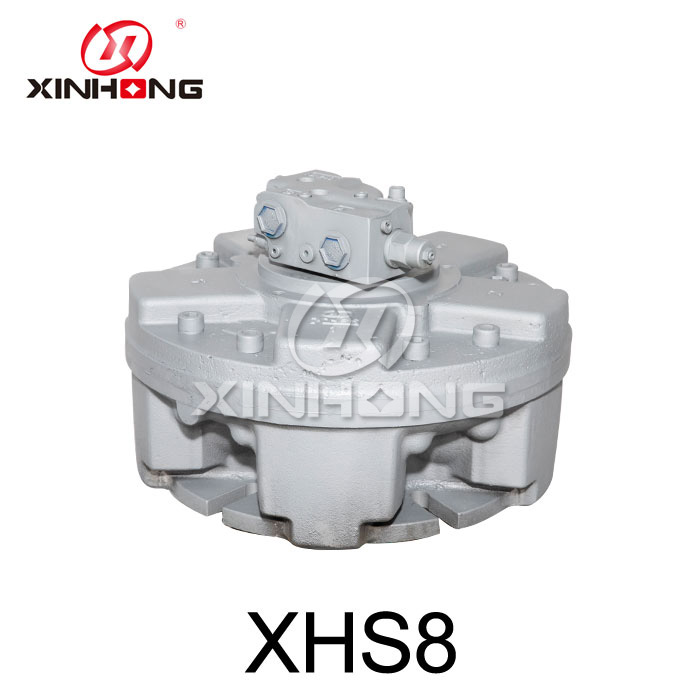

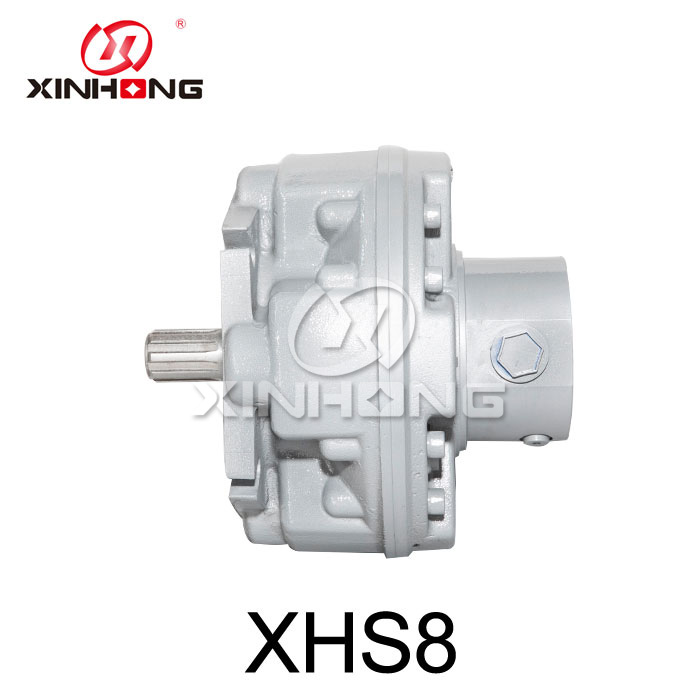

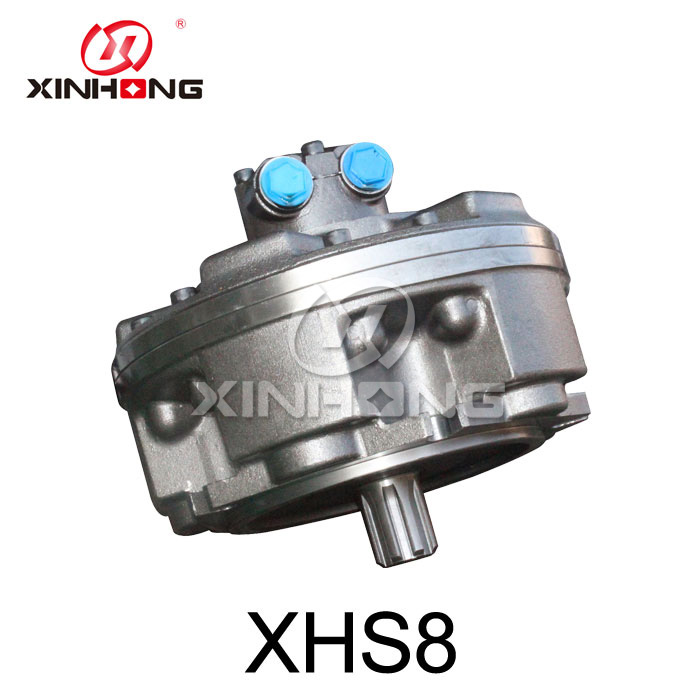

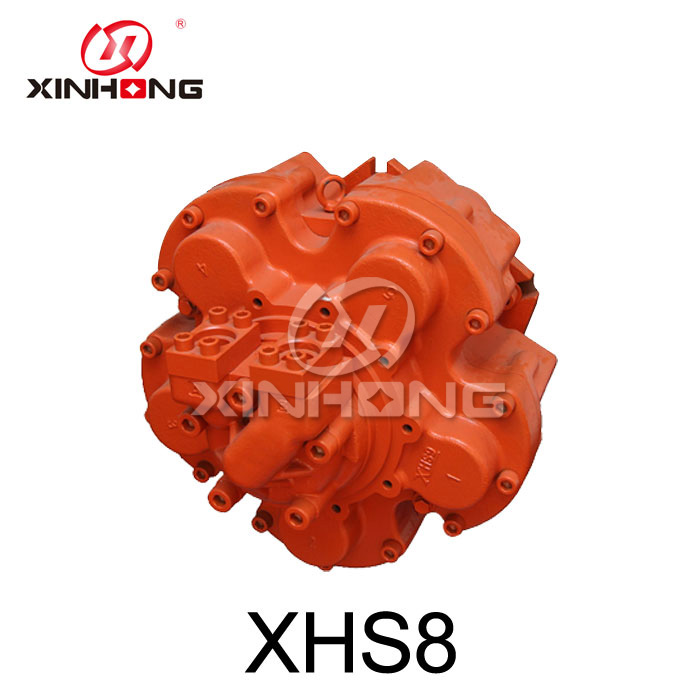

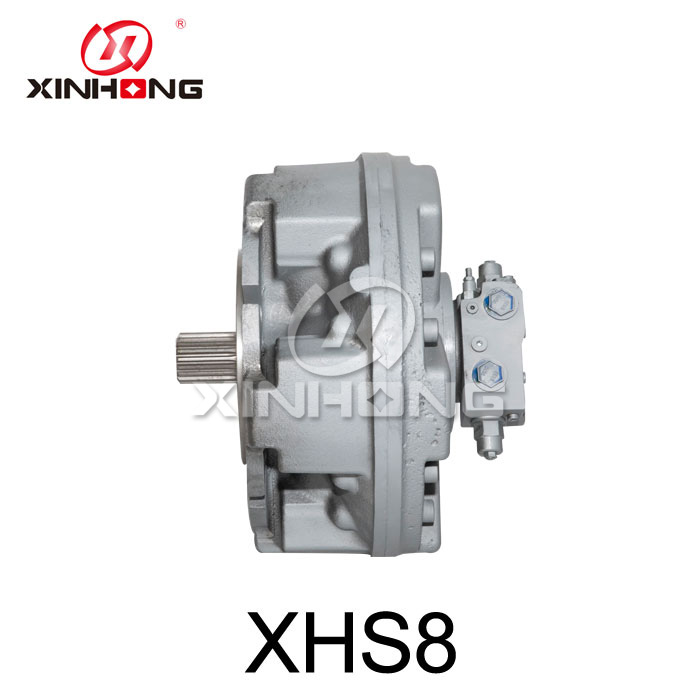

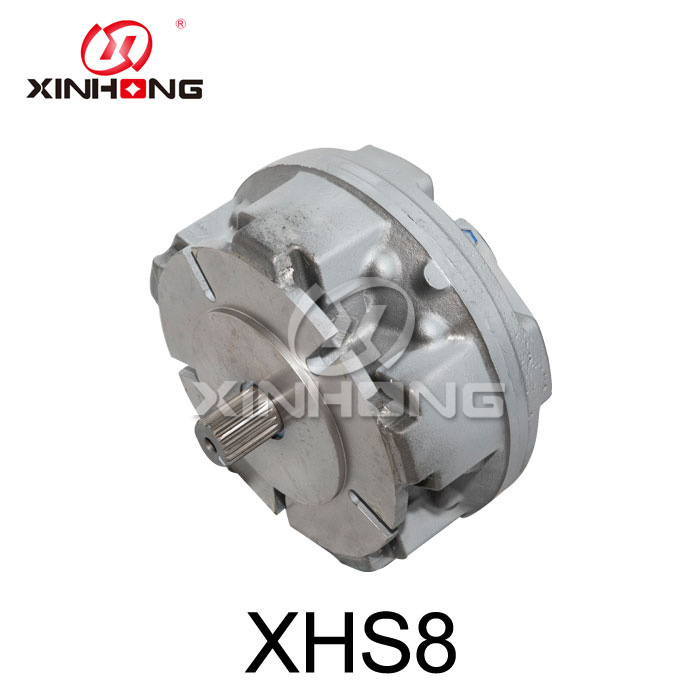

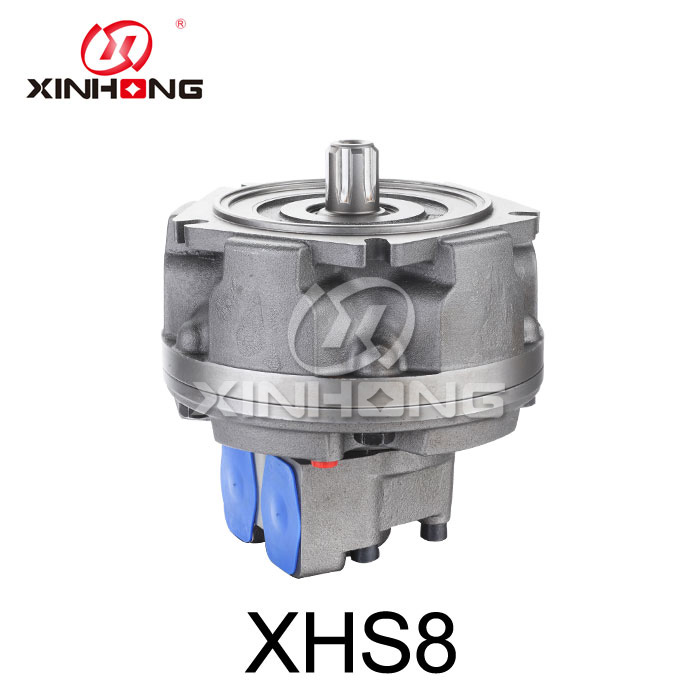

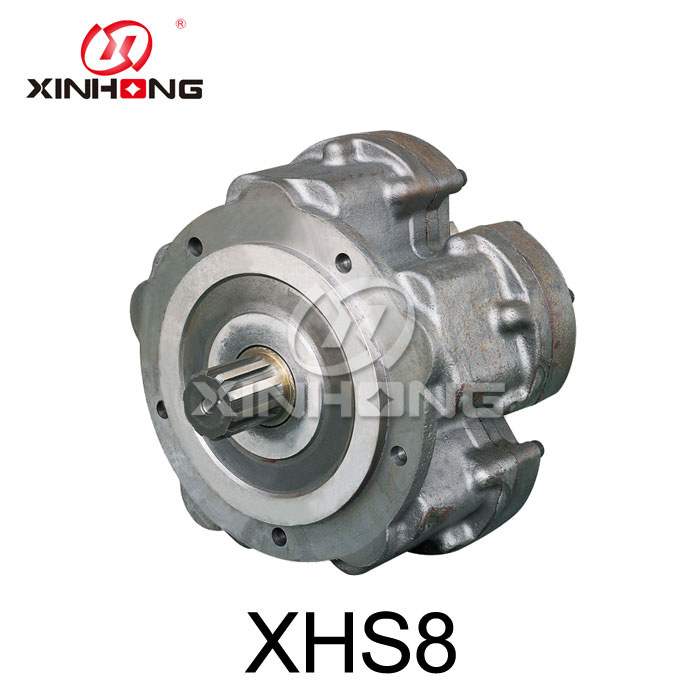

1.Product Introduction of Radial Piston Motor for Crane Winches
We have manufactured this Radial Piston Motor for Crane Winches since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor for Crane Winches can transfer hydraulic energy to mechanical energy with high efficiency.Our corporation since its inception, constantly regards solution excellent as organization life, constantly increase creation technology, increase merchandise good quality and continually strengthen business total quality management, in strict accordance while using the national standard ISO 9001:2000 for Massive Selection for China Series Radial Piston Hydraulic Saw Crane Motor and Spare Parts Oil Pump, We will continually strive to boost our provider and supply the most beneficial excellent solutions with aggressive prices. Any inquiry or comment is highly appreciated. Be sure to get hold of us freely. Massive Selection for China GM Piston Motor, Ship Cabin Motor, Our products are mainly exported to Southeast Asia, the Middle East, North America and Europe. Our quality is surely guaranteed. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
2.Product Parameter (Specification) of Radial Piston Motor for Crane Winches
|
XHS8 |
Unit |
5300 |
5500 |
5800 |
6000 |
6300 |
6500 |
6800 |
7000 |
|
Displacement |
ml/r |
5307 |
5525 |
5779 |
6016 |
6270 |
6528 |
6782 |
7061 |
|
Specific torque |
Nm/MPa |
843 |
878 |
918 |
956 |
996 |
1037 |
1078 |
1122 |
|
Pressure rating |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Peak pressure |
MPa |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|
Peak power |
kW |
280 |
280 |
280 |
280 |
280 |
280 |
280 |
280 |
|
Torque rating |
Nm |
19090 |
19875 |
20785 |
21640 |
22555 |
23480 |
24395 |
25400 |
|
Peak torque |
Nm |
22725 |
23655 |
24745 |
25760 |
26845 |
27950 |
29040 |
30235 |
|
Speed rating |
r/min |
135 |
130 |
125 |
120 |
115 |
110 |
105 |
100 |
|
Cont. speed |
r/min |
170 |
160 |
155 |
150 |
145 |
140 |
130 |
125 |
|
Max. speed |
r/min |
180 |
170 |
165 |
160 |
155 |
150 |
140 |
135 |
|
Weight |
kg |
475 |
475 |
475 |
475 |
475 |
475 |
475 |
475 |
3.Product Feature And Application
This is a fixed displacement and Radial Piston Motor for Crane Winches. This Radial Piston Motor for Crane Winches has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of Radial Piston Motor for Crane Winches
This Radial Piston Motor for Crane Winches is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of Radial Piston Motor for Crane Winches
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Radial Piston Motor for Crane Winches
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
