We have developed and sold this Radial Piston Motor for Heavy-duty winch to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Radial Piston Motor for Heavy-duty winch from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Radial Piston Motor for Heavy-duty Winch

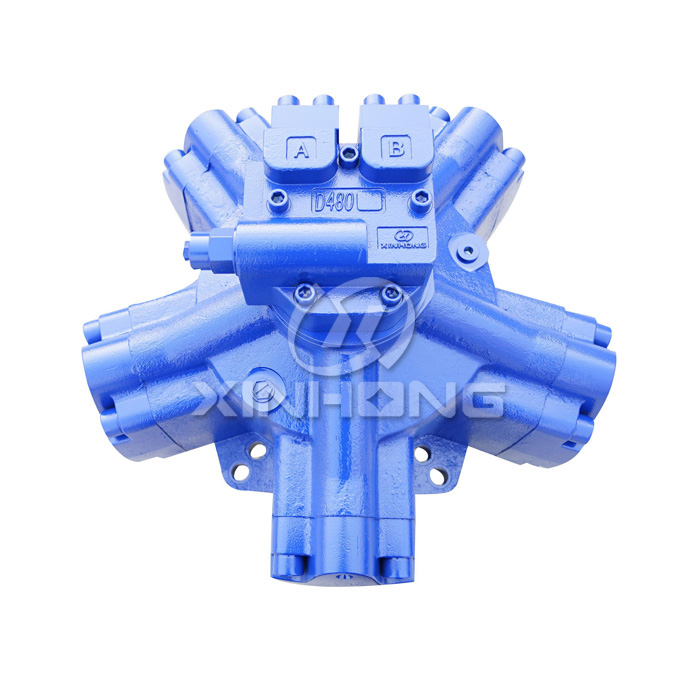

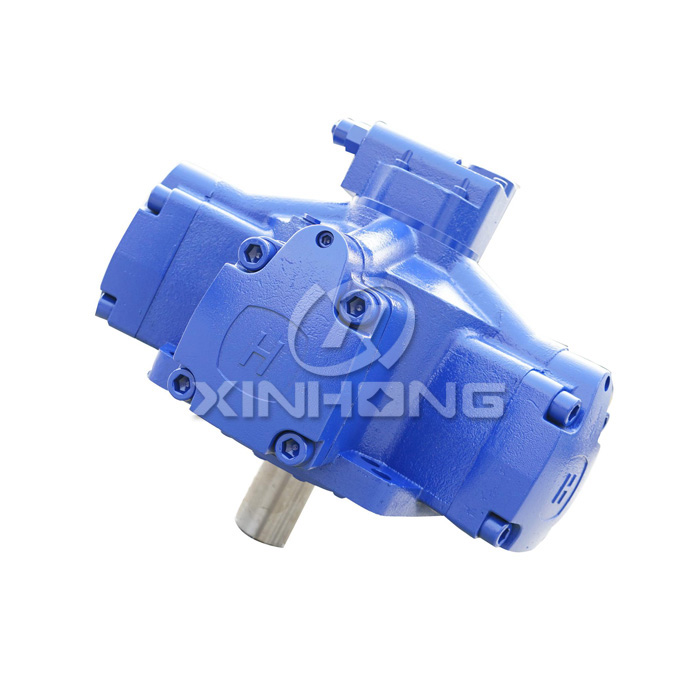

We have manufactured this Radial Piston Motor for Heavy-duty Winch since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor for Heavy-duty Winch can transfer hydraulic energy to mechanical energy with high efficiency.
2.Product Parameter (Specification) of Radial Piston Motor for Heavy-duty Winch
|
XHM31 |
Unit |
31-2500 |
31-2800 |
31-3000 |
31-3150 |
31-3500 |
16-4000 |
31-4500 |
31-5000 |
|
Displacement |
ml/r |
2553 |
2683 |
3063 |
3218 |
3462 |
4155 |
4524 |
4828 |
|
Pressure rating |
MPa |
25 |
25 |
20 |
20 |
20 |
20 |
20 |
16 |
|
Peak pressure |
MPa |
32 |
32 |
25 |
25 |
25 |
25 |
25 |
20 |
|
Torque rating |
Nm |
9523 |
10559 |
9135 |
9392 |
10220 |
12481 |
13508 |
12387 |
|
Specific torque |
Nm/MPa |
405 |
443 |
485 |
500 |
544 |
665 |
720 |
825 |
|
Max Power |
Kw |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
110 |
|
Max. speed |
r/min |
120 |
120 |
120 |
120 |
120 |
110 |
110 |
110 |
|
Weight |
kg |
298 |
298 |
298 |
298 |
298 |
298 |
298 |
298 |
3.Product Feature And Application
This is a fixed displacement and Radial Piston Motor for Heavy-duty Winch. This Radial Piston Motor for Heavy-duty Winch has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of Radial Piston Motor for Heavy-duty Winch
This Radial Piston Motor for Heavy-duty Winch is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of Radial Piston Motor for Heavy-duty Winch
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Radial Piston Motor for Heavy-duty Winch
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
