We have developed and sold this Radial Piston Motor for Winches to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. In recently years, the factory has won the sincere love of customers by relying on its sincere reputation, professional and and enthusiastic service to convey the three excellent standard services of high quality materials, preferential prices and excellent service to our customers. We are expecting to become your long-term partner in China.

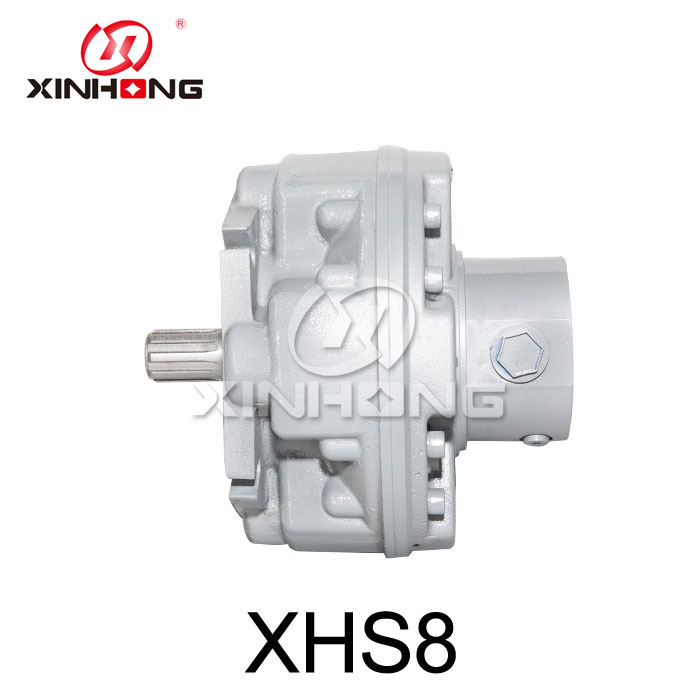

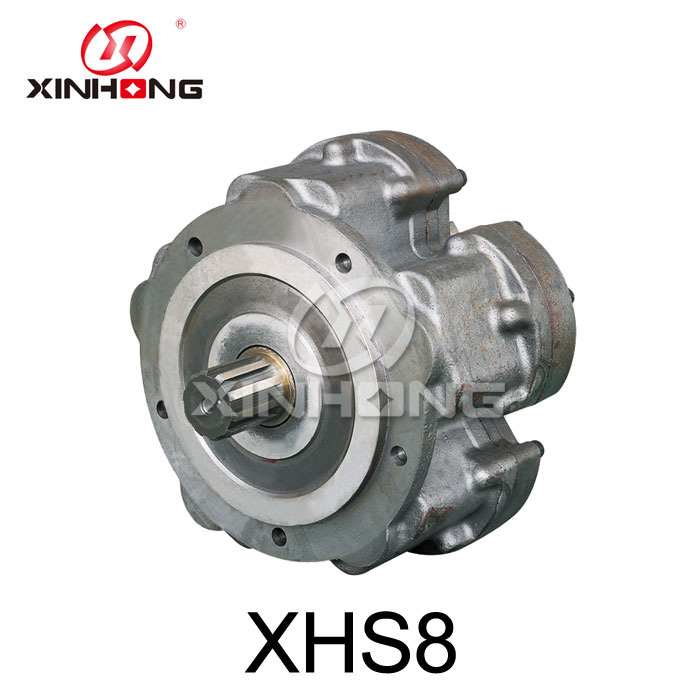

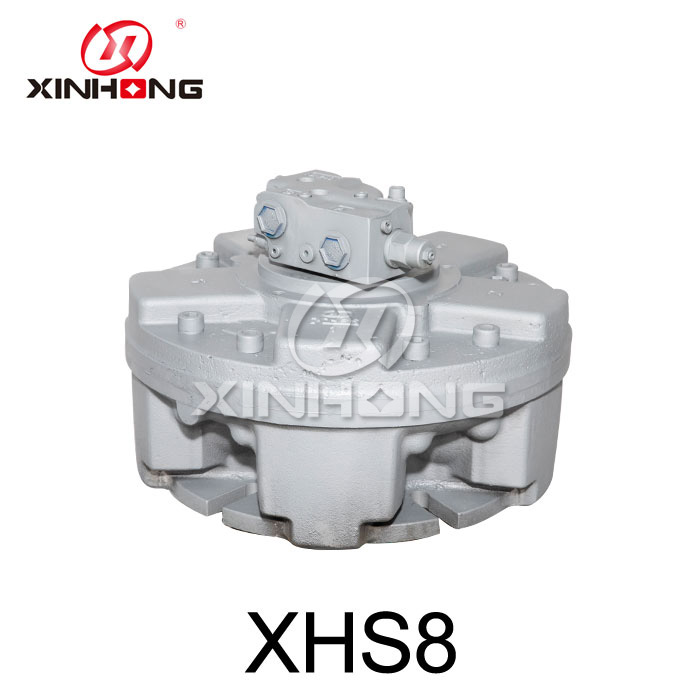

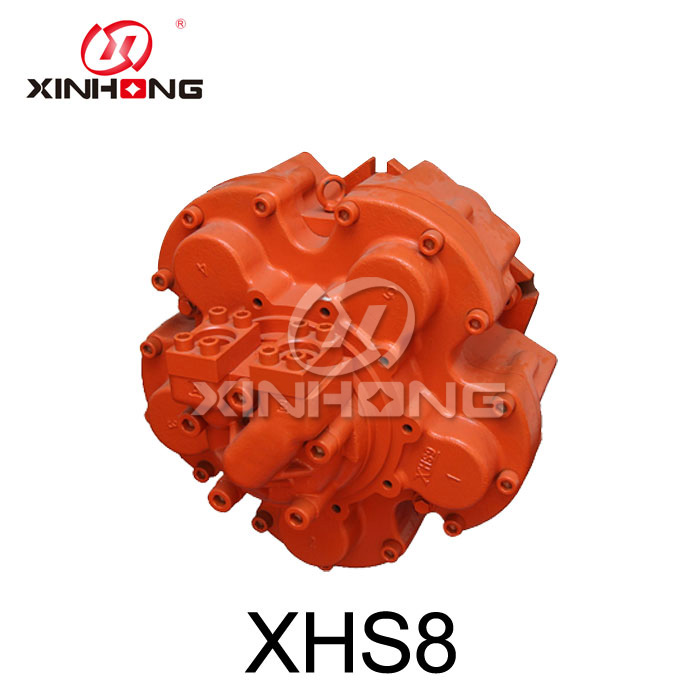

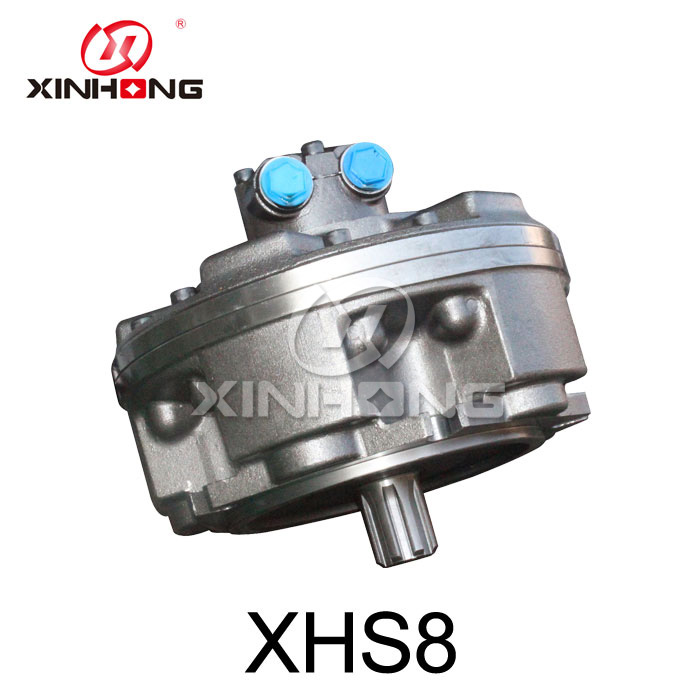

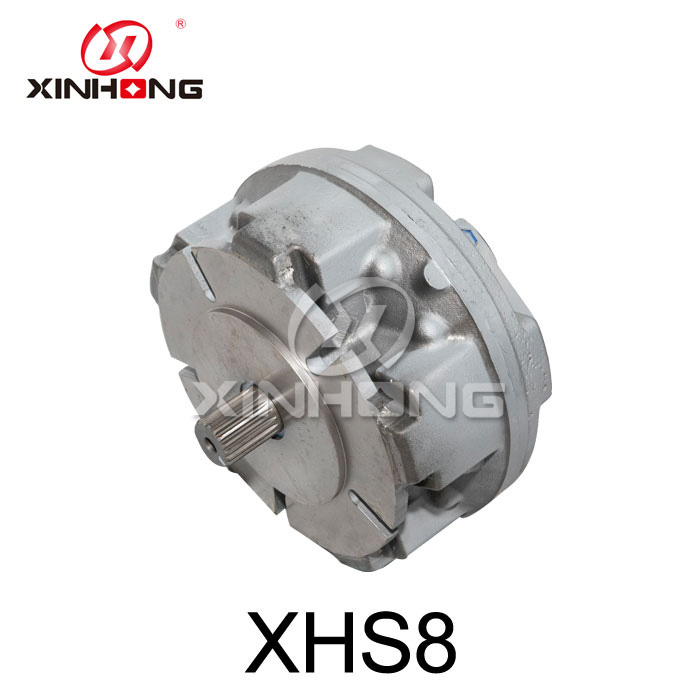

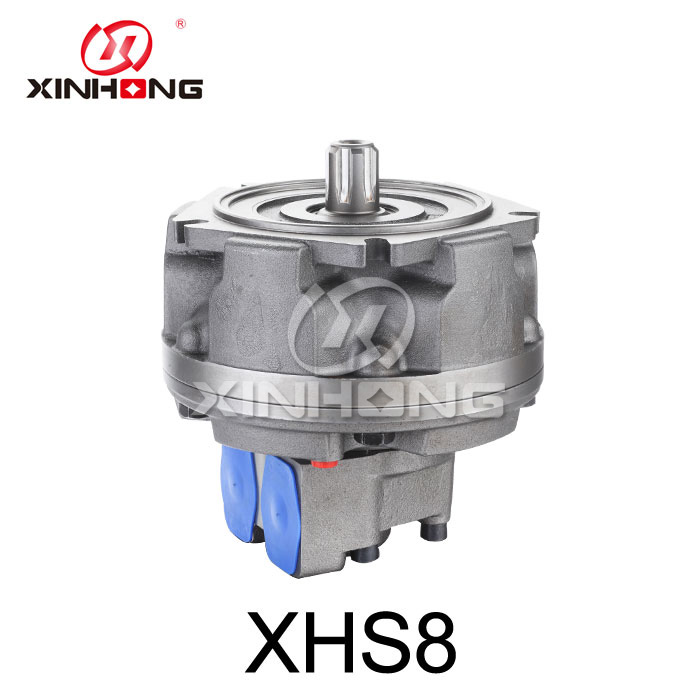

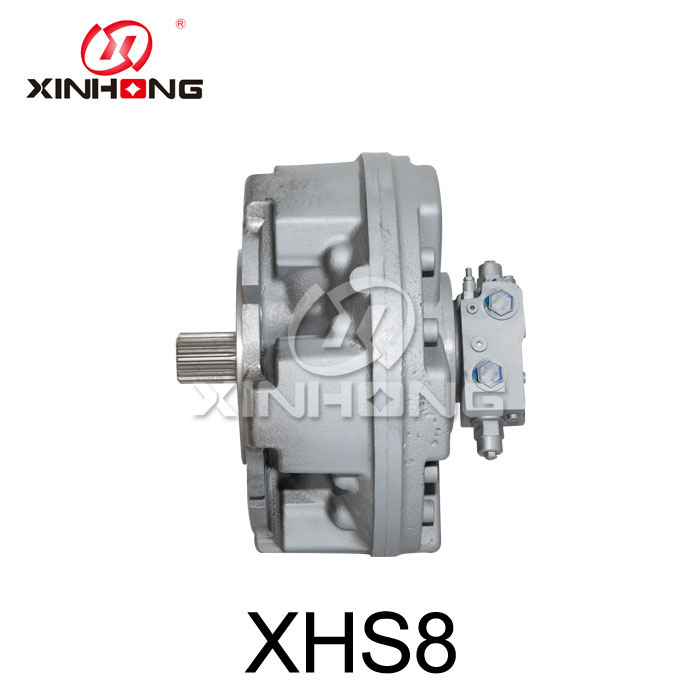

1.Product Introduction of Radial Piston Motor for Winches
We have manufactured this Radial Piston Motor for Winches since 2006. We have a plenty of experience and advanced equipment to guarantee the quality and delivery time. This Radial Piston Motor for Winches can transfer hydraulic energy to mechanical energy with high efficiency.
2.Product Parameter (Specification) of Radial Piston Motor for Winches
|

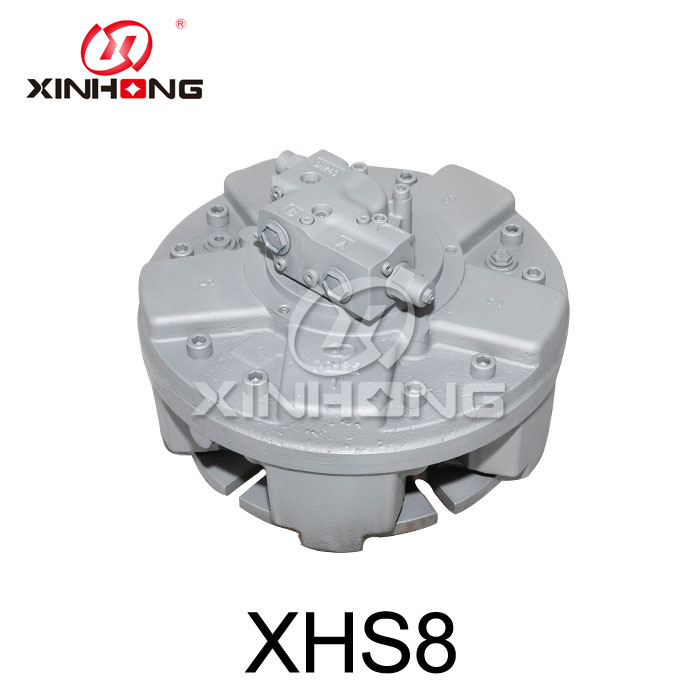

XHS8 |
Unit |
5300 |
5500 |
5800 |
6000 |
6300 |
6500 |
6800 |
7000 |
|
Displacement |
ml/r |
5307 |
5525 |
5779 |
6016 |
6270 |
6528 |
6782 |
7061 |
|
Specific torque |
Nm/MPa |
843 |
878 |
918 |
956 |
996 |
1037 |
1078 |
1122 |
|
Pressure rating |
MPa |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
25 |
|
Peak pressure |
MPa |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
31.5 |
|
Peak power |
kW |
280 |
280 |
280 |
280 |
280 |
280 |
280 |
280 |
|
Torque rating |
Nm |
19090 |
19875 |
20785 |
21640 |
22555 |
23480 |
24395 |
25400 |
|
Peak torque |
Nm |
22725 |
23655 |
24745 |
25760 |
26845 |
27950 |
29040 |
30235 |
|
Speed rating |
r/min |
135 |
130 |
125 |
120 |
115 |
110 |
105 |
100 |
|
Cont. speed |
r/min |
170 |
160 |
155 |
150 |
145 |
140 |
130 |
125 |
|
Max. speed |
r/min |
180 |
170 |
165 |
160 |
155 |
150 |
140 |
135 |
|
Weight |
kg |
475 |
475 |
475 |
475 |
475 |
475 |
475 |
475 |
3.Product Feature And Application
This is a fixed displacement and Radial Piston Motor for Winches. This Radial Piston Motor for Winches has excellent cavitation resistance. These motors can provide hydraulic power for winches, cranes, trucks and mechanical actuators. They are widely applied to construction, ship deck and mining industrial.
4.Product Details of Radial Piston Motor for Winches
This Radial Piston Motor for Winches is actuated by pistons and can work under high pressure condition. We supply a range of displacements of motor for customers. They can select motors according to their actual demand.
5.Product Qualification of Radial Piston Motor for Winches
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Radial Piston Motor for Winches
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
