We have developed and sold this Reduction Gearbox to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Reduction Gearbox from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Reduction Gearbox

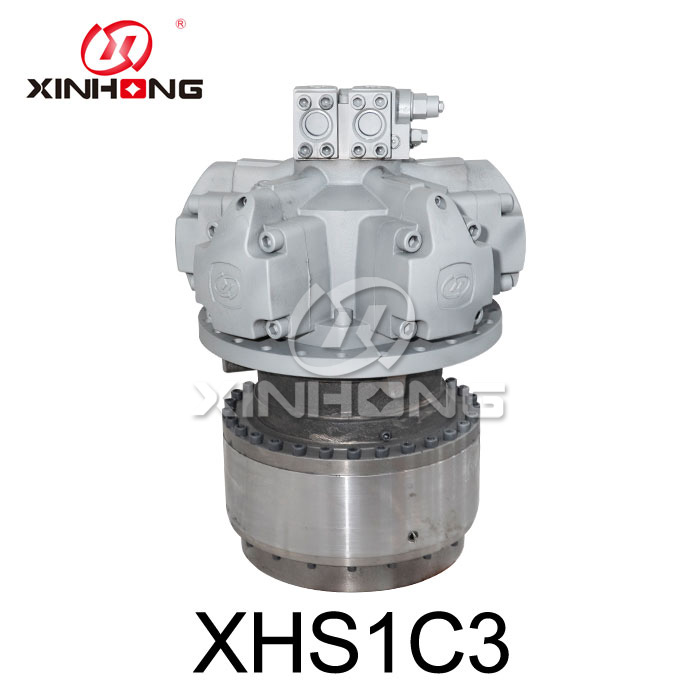

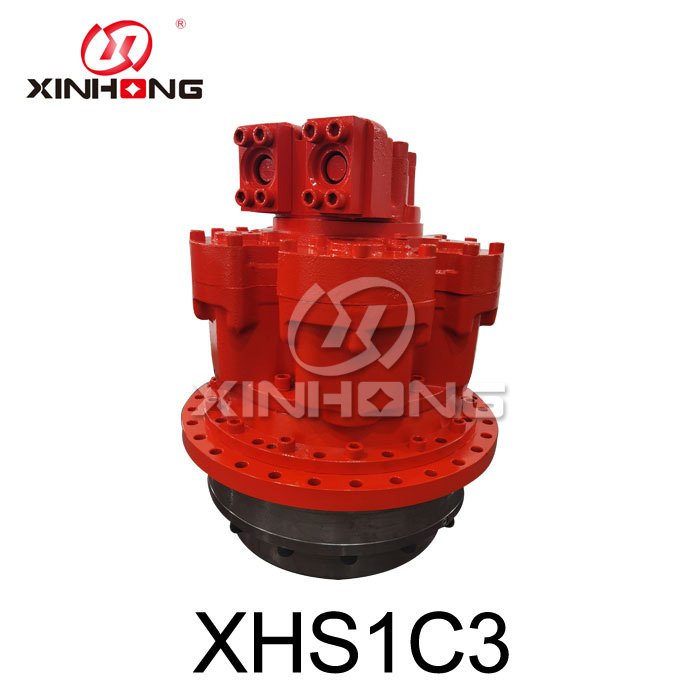

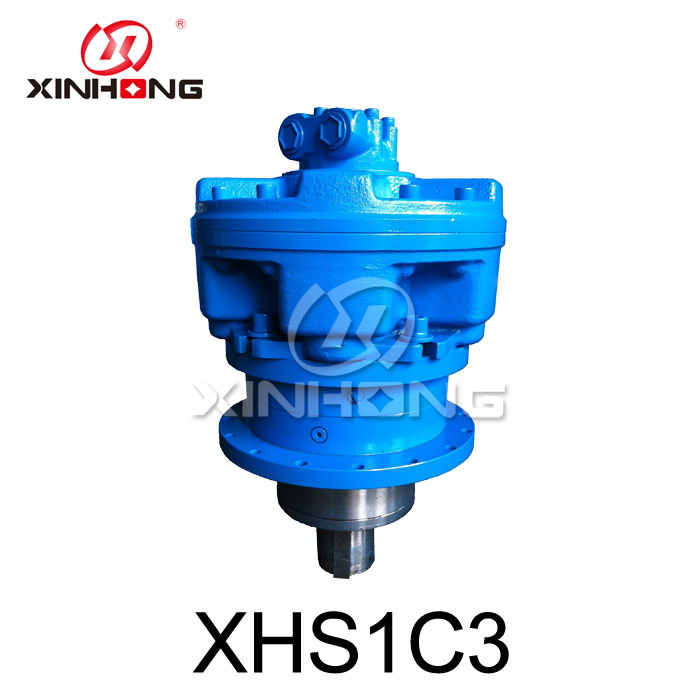

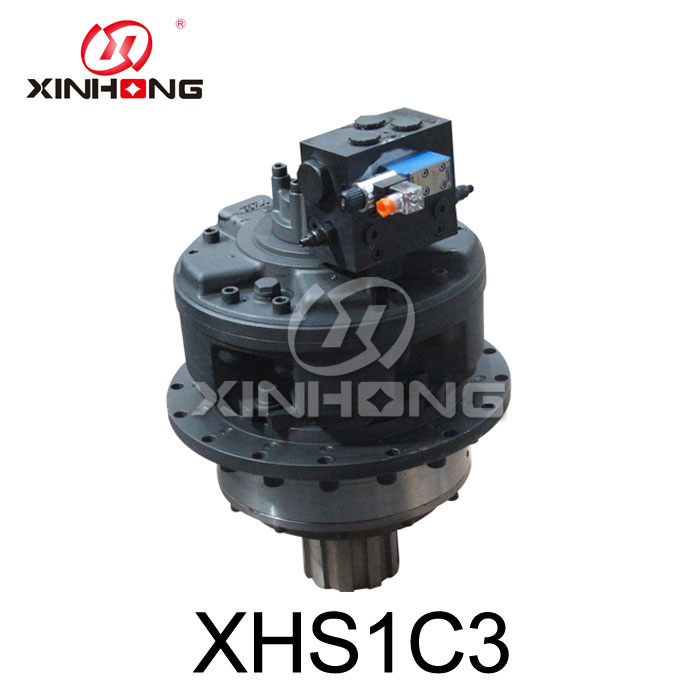

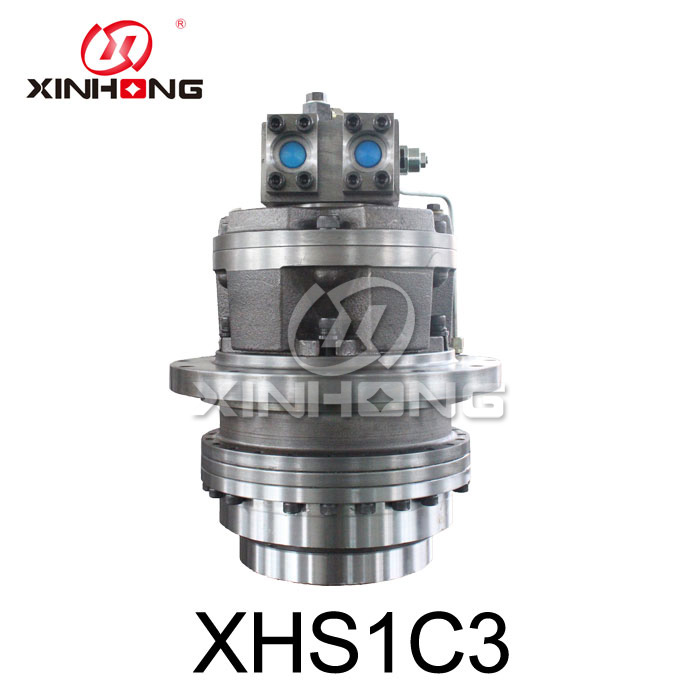

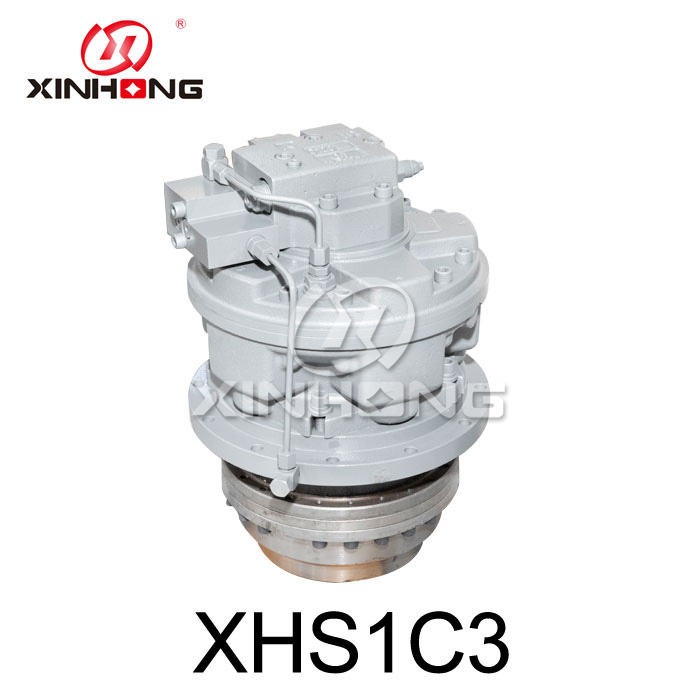

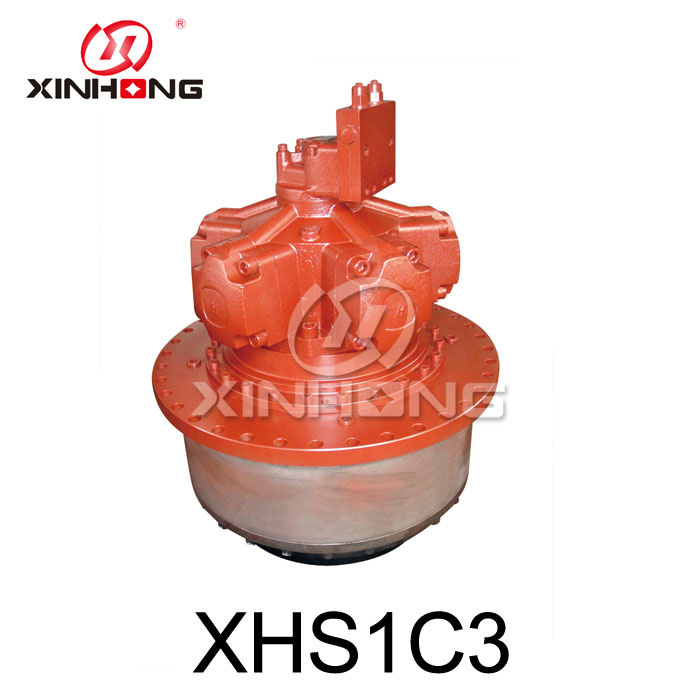

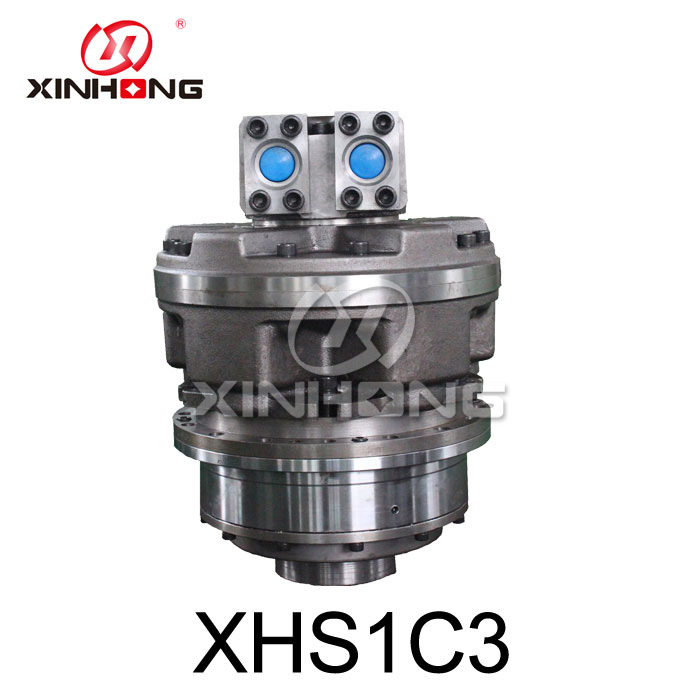

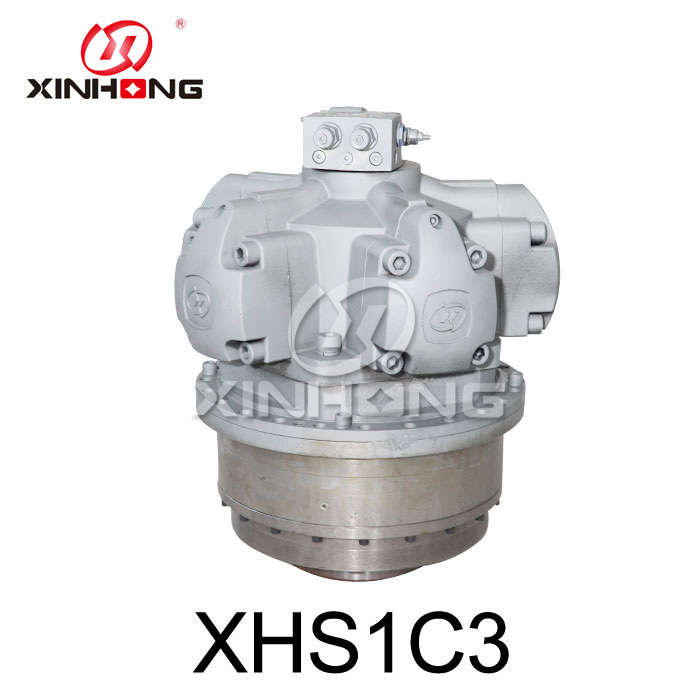

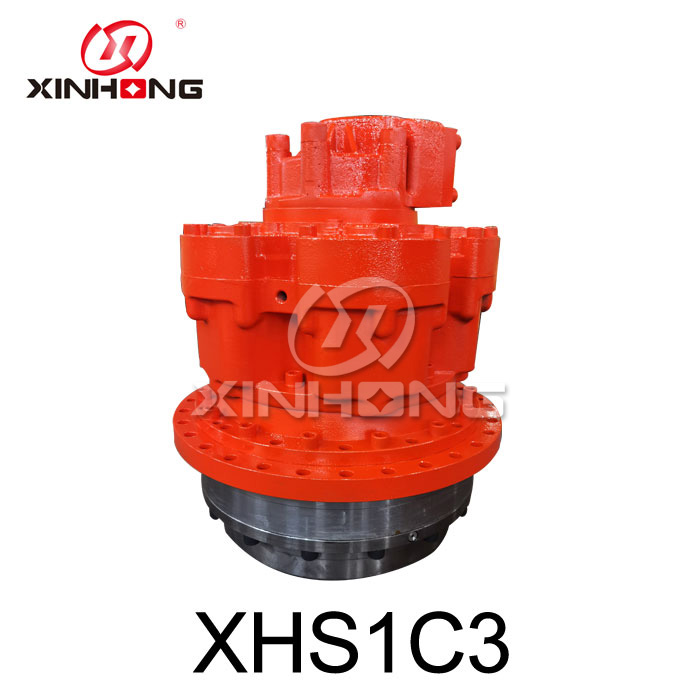

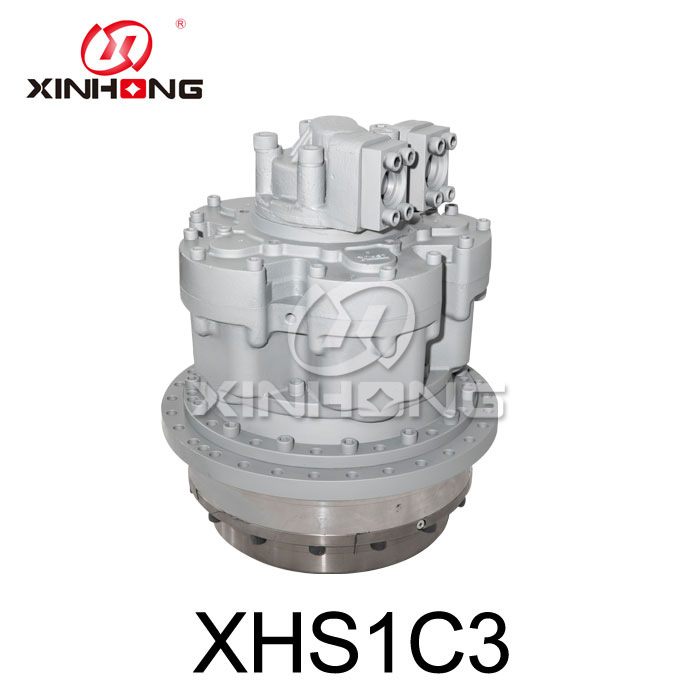

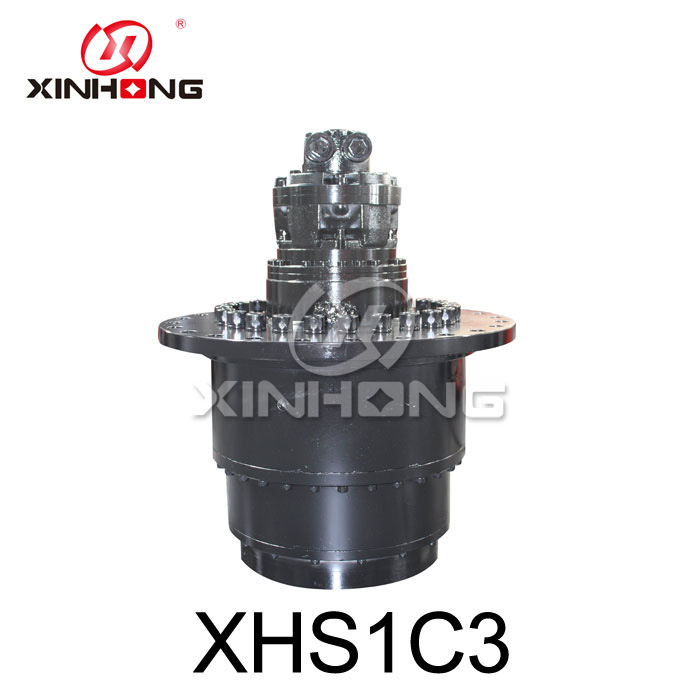

We have manufactured this Reduction Gearbox since 2006. We have a plenty of experience and advanced equipment in manufacturing Reduction Gearbox with the precisely helical teeth and balanced sun-gear shaft. This Reduction Gearbox can transfer power from hydraulic motor to winch or rotatory machine.
2.Product Parameter (Specification) of Reduction Gearbox
|
Model |
Total Displacement(ml/r) |
Rated torque（N.M） |
Speed (r/min) |
Total (efficency) |
Hydraulic motor model |
Planetary reducer model |
Brake model |
|
20Mpa |
|||||||
|
XHS1C3-1250 |
1215 |
3380 |
0-90 |
0.88-0.9 |
XHS1-250 |
C3-5 |
XHZ3 |
|
XHS1C3-1450 |
1450 |
4022 |
0-90 |
0.88-0.9 |
XHS1-300 |
C3-5 |
XHZ3 |
|
XHS1C3-1600 |
1570 |
4361 |
0-90 |
0.88-0.9 |
XHS1-320 |
C3-5 |
XHZ3 |
3.Product Feature And Application
This Reduction Gearbox includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Reduction Gearbox can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Reduction Gearbox is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.
4.Product Details of Reduction Gearbox
Our Reduction Gearbox has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Reduction Gearbox boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.
5.Product Qualification of Reduction Gearbox
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Reduction Gearbox
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
