We have developed and sold this Winch Gearbox with Compact Structure to European, American and Southeast Asian market for many years. We have a professional product design and manufacture team to guarantee the quality and delivery time for customers. Welcome to buy Winch Gearbox with Compact Structure from us. Every request from customers is being replied within 24 hours.
1.Product Introduction of Winch Gearbox with Compact Structure

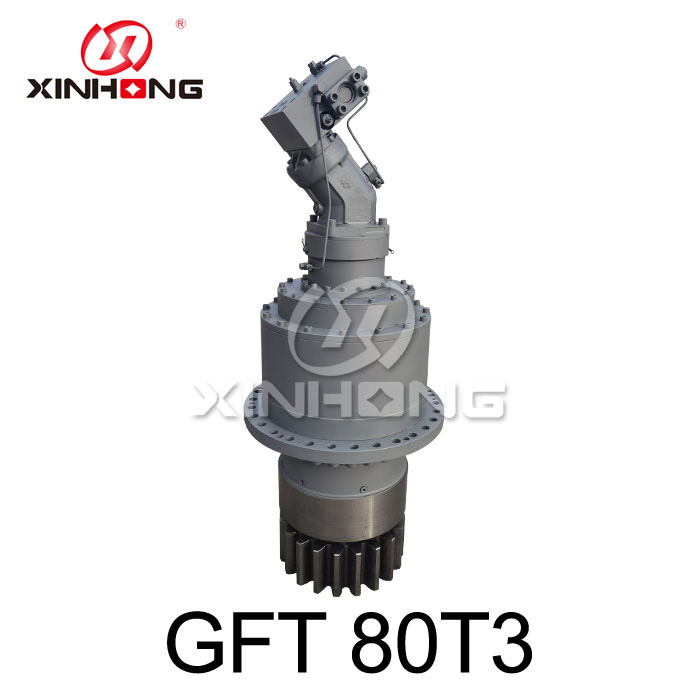

We have manufactured this Winch Gearbox with Compact Structure since 2006. We have a plenty of experience and advanced equipment in manufacturing Winch Gearbox with Compact Structure with the precisely helical teeth and balanced sun-gear shaft. This Winch Gearbox with Compact Structure can transfer power from hydraulic motor to winch or rotatory machine.
2.Product Parameter (Specification) of Winch Gearbox with Compact Structure
|
Max Output torque（TmaxN.m） |
Transmission ratio |
Model of hydraulic motor |
Max.input rotating ratio(r/min) |
Static brake torque(TBRmax.N.m) |
Brake working pressure Mpa |
|
|
80000 |
76.7 99 110.9 126.9 149.9 185.4 |
A2FE107 A2FE125 A2FE160 A2FE180 |
A6VE107 A6VE160 |
2000 |
800-1600 |
1.8-5 |
3.Product Feature And Application
This Winch Gearbox with Compact Structure includes several planetary gear set which is made up of the sun gear (center gear), several planet gears and ring gear which rotate between each others. The load from the sun gear is distributed to multiple planetary gears which can either be applied to actuate an outer ring or a shaft or spindle. The center sun gear of Winch Gearbox with Compact Structure can change a high speed and low torque input from hydraulic motors or electric motors to a low speed and high torque output. This Winch Gearbox with Compact Structure is widely applied in wheel drives, slew drives, winch drives, track drives and cutter heads.

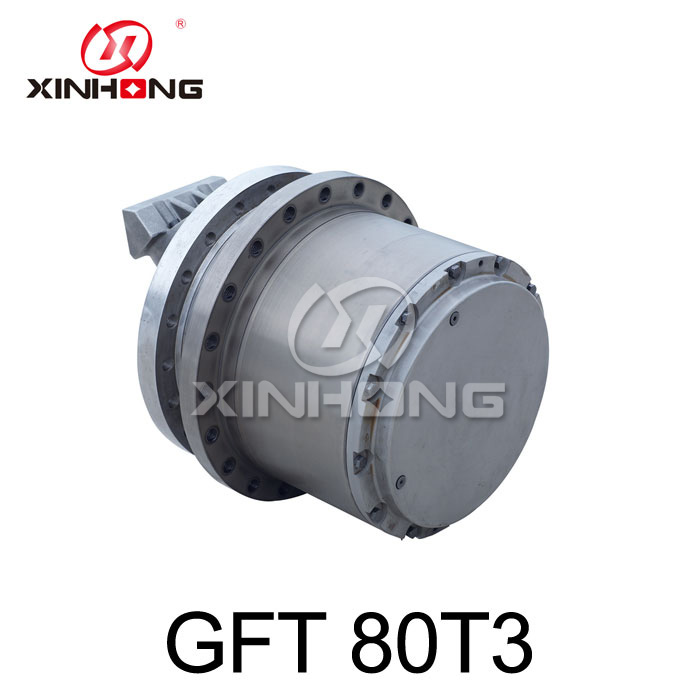

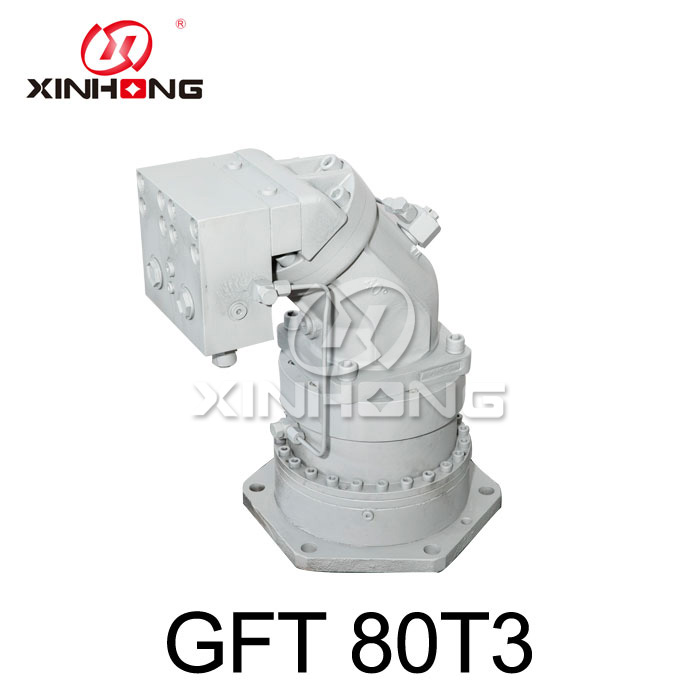

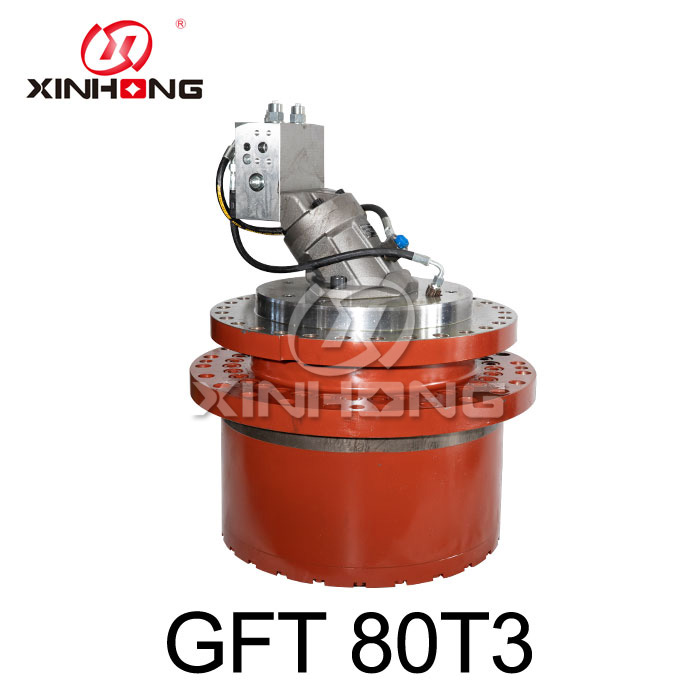

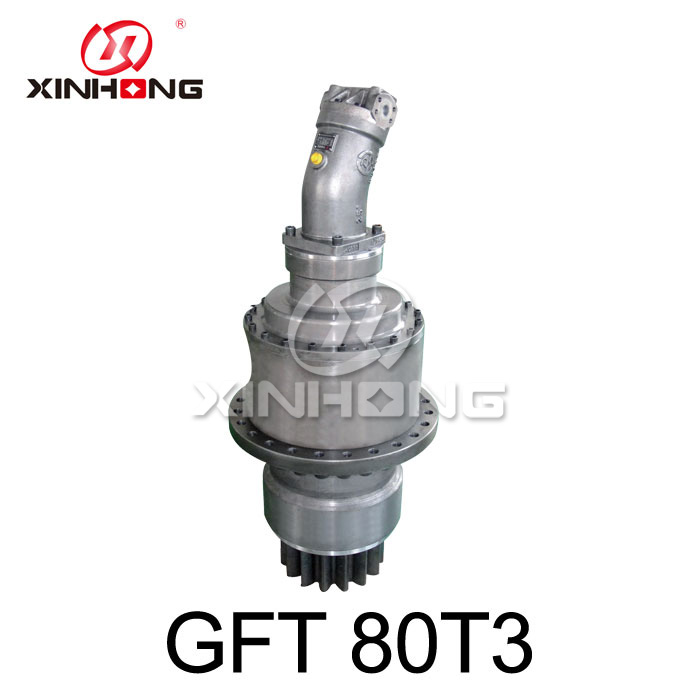

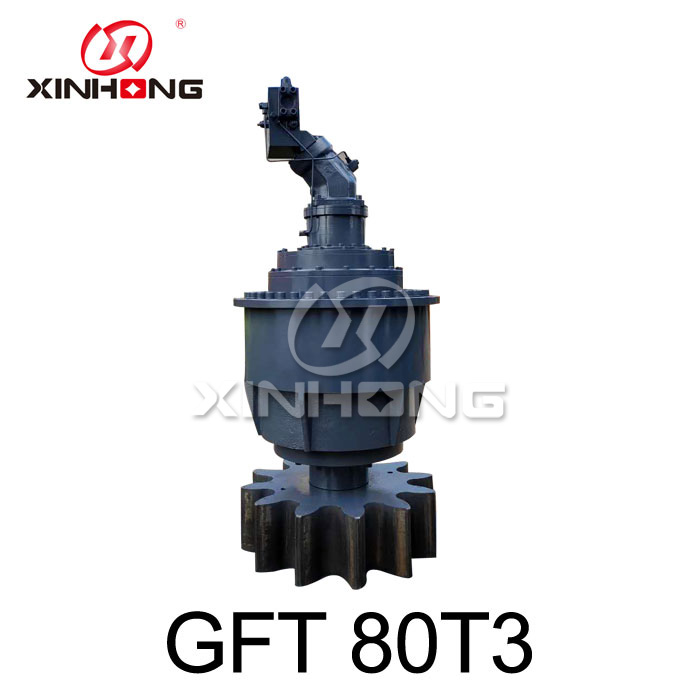

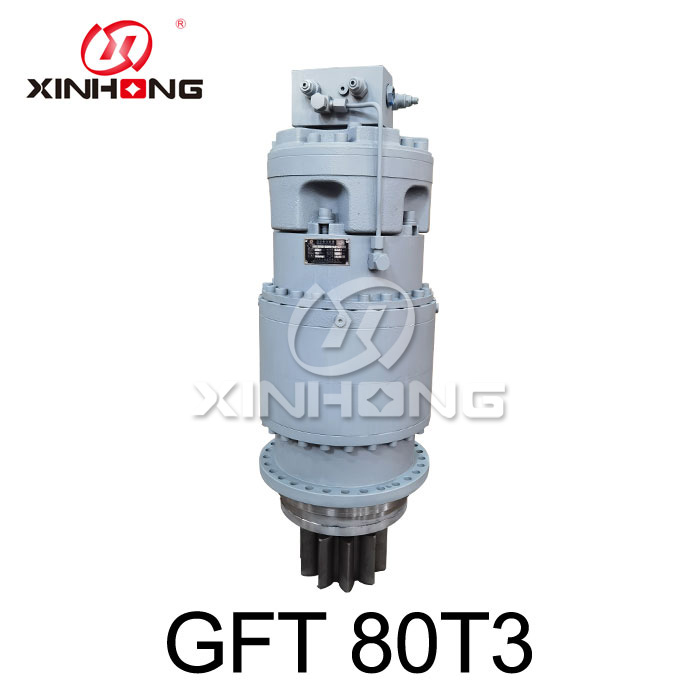

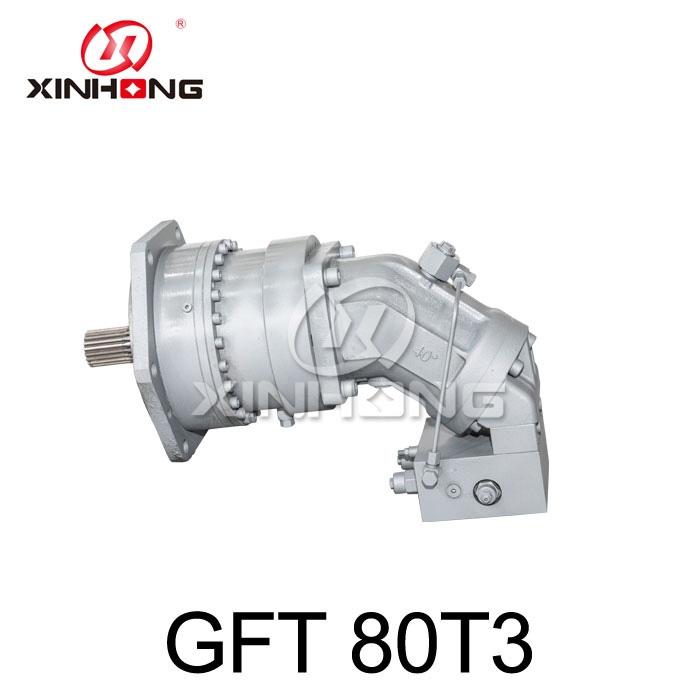

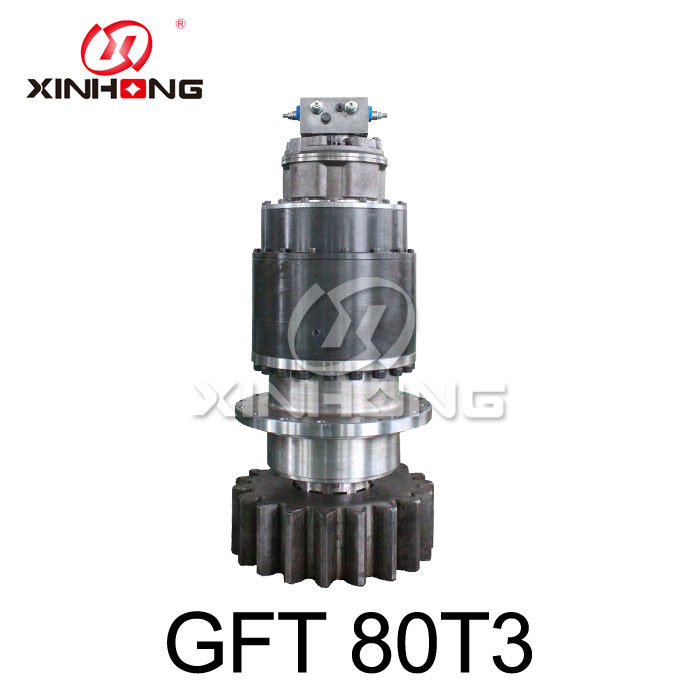

4.Product Details of Winch Gearbox with Compact Structure
Our Winch Gearbox with Compact Structure has a simple design which can transfer power from a motor to an output in high efficiency. Approximately 97% of the energy input is delivered as an output due to our advanced processing equipment and unique design. Our Winch Gearbox with Compact Structure boasts low and high speed functions and unbeatable long-life performance, ideal for winches and mobile equipment.
5.Product Qualification of Winch Gearbox with Compact Structure
Our products are certificated by CCS, DNV, BV, LR. Each product is delivered with a quality certification.
6.Deliver,Shipping And Serving of Winch Gearbox with Compact Structure
We can guarantee to provide a short delivery time and high performance products to our customers. We also provide one year warranty.
